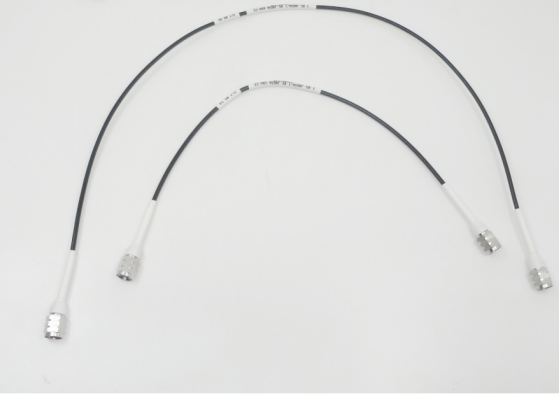

Temperature & Mechanically Phase-Stable Flexible Coaxial Cable Assemblies for RF Testing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Frequency Range: | DC~18GHz | Custom Length: | 80mm, 200mm, 300mm, 500mm, 800mm，1000mm |
|---|---|---|---|
| Connector A: | SMA Jack/Plug | Connector B: | SMA Jack/Plug |
| Cable Type: | CXN3506/MF108A | Impedance: | 50Ω |
| Cable Color: | Grey | Plating: | Gold Plated |
| Other Cable: | CXN3507, CXN3449,CXN3450 Or EQV. Cable | ||
| Highlight: | flexible coaxial cable assemblies for RF testing,phase-stable RF cable assemblies,temperature-stable flexible coaxial cables |
||
Product Description:
This high-performance 50Ω RF cable assembly delivers stable, low-loss signal transmission for modern high-frequency RF systems. Adopting premium gold-plated connectors, it features excellent conductivity, superior corrosion resistance and minimized signal degradation, ensuring long-term consistent performance even in harsh working environments.
Built with 2.3mm-diameter CXN3506 cable, this assembly perfectly balances outstanding flexibility and structural durability. It allows easy installation in confined spaces while maintaining excellent electrical properties and low attenuation for high-frequency transmission. With insulation resistance ≥5000MΩ, it effectively guarantees reliable signal integrity and electrical safety.
Versatile and highly compatible, this robust cable assembly fits a wide range of scenarios, including telecommunications, satellite communication, aerospace, industrial RF systems, as well as professional test and measurement setups, serving as a reliable solution for diverse high-precision RF connectivity needs.
Technical Parameters:
| Product Name | SMA RF Cable Assembly |
| Impedance | 50Ω |
| Cable OD | 2.3 mm |
| Durability | Mating Cycles ≥500 Times |
| Connector A | SMA Female |
| Connector B | SMA Male |
| Cable Color | Grey |
| Pin of Connector Plating | Gold Plated |
| Frequency Range | DC~18GHz |
| Custom Length | 100mm, 200mm, 300mm, 500mm, 1000mm |
Applications:
The ELT CXN3506 RF Cable Assembly is a premium high-frequency interconnect solution designed for high-performance connectivity and stable, low-loss signal transmission across diverse industrial and commercial RF scenarios. Precisely engineered and manufactured in China, this professional RF cable assembly holds ISO9001 quality certification and ISO14001 environmental certification, delivering consistent, standardized product quality. Supporting a wide frequency range from DC to 18GHz, it perfectly fits advanced wireless communication systems and various high-frequency RF application environments.
As a core RF connectivity product, the ELT CXN3506 SMA Cable Assembly features a 2.3mm grey cable body, combining sturdy structural durability and convenient field identification for complex wiring projects. Widely deployed in telecommunications infrastructure such as base stations, signal repeaters and wireless communication devices, this high-frequency cable assembly effectively reduces signal attenuation and maintains robust, stable RF connectivity. It supports flexible system integration, compatible with multiple connector types while retaining original electrical performance without compromise.
This versatile RF cable assembly performs outstandingly in laboratory test and measurement scenarios. Covering a full DC-18GHz frequency bandwidth, it serves as a reliable interconnect for high-frequency test instruments, supporting professional RF testing, signal analysis, network diagnosis and other precision measurement work to ensure accurate and repeatable test data.
In addition to communication and testing fields, the ELT CXN3506 and MF108A RF Cable Assemblies are widely applied in aerospace and medical equipment industries, where strict signal integrity and long-term operational reliability are essential. Built with rugged construction and precision manufacturing technology, these professional RF cables adapt to harsh working environments and meet the stringent requirements of mission-critical applications. Overall, our ELT high-frequency RF cable assembly series provides reliable, cost-effective and comprehensive RF connection solutions for global engineering and technical professionals.
Customization:
ELT offers customized RF Coaxial Cable Assembly solutions designed to meet your specific requirements. The assemblies come with SMA Male connectors (Connector B) and provide excellent insulation resistance of ≥5000MΩ, guaranteeing reliable performance in various applications.
Our SMA Cable Assemblies are available with a minimum order quantity of 30 pieces. Delivery time ranges from 8 to 10 weeks, and we accept payment terms including T/T and L/C for your convenience. Trust ELT for your RF Coaxial Cable Assembly needs, where quality, customization, and timely delivery come together to support your projects.
Packing and Shipping:
Each RF Cable Assembly is carefully packaged to ensure maximum protection during transit. The product is placed in an anti-static bag to prevent any electrostatic damage, followed by a protective foam padding to absorb shocks and vibrations. The assembly is then secured in a sturdy, corrugated cardboard box designed to withstand handling and shipping stresses. For bulk orders, multiple units are individually packaged and then consolidated into larger shipping cartons with additional cushioning materials to prevent movement and damage.
All packages are clearly labeled with product information, handling instructions, and shipping details to ensure accurate and safe delivery.
We offer various shipping options including standard ground, expedited, and international shipping to meet the needs of our customers. Tracking information is provided upon shipment to allow customers to monitor their order until delivery.
