Space Saving or High-frequency RF Connector Hermetically Sealed CSMP Male Connector for PCB Soldering

Product Introduction:

Space Saving or High-frequency CSMP RF Male Connector for PCB Mount

The CSMP RF Connector, featuring a center conductor made of gold-plated Kovar Alloy, ensures consistent and reliable signal transmission across a wide frequency range from 0.04GHz to 40GHz. This makes it ideal for high-frequency applications requiring precision and stability.

With an insulation resistance of ≥2000MΩ, the CSMP RF Connector minimizes signal loss and maintains signal integrity even under challenging conditions, contributing to its overall reliability and performance in critical RF systems.

Designed with a 50Ω impedance rating, the CSMP RF Connector matches the impedance of connected components, reducing reflections and signal distortions for optimal signal transfer and maximum RF system efficiency.

The compact form factor of the CSMP RF Connector, also known as Supper micro SMP, is smaller than SSMP(mini smp, smpm), making it perfect for space-saving applications. Its small size supports high-density installations without compromising performance, offering a versatile solution for modern RF systems.

In conclusion, the CSMP RF Connector combines superior materials, precision engineering, and high-performance capabilities, making it the ideal choice for various RF applications. Whether for space-constrained environments or high-frequency applications, the SSMP and CSMP RF Connectors provide reliable connectivity and exceptional signal integrity.

Features:

• Supper micro SMPMini type SMP Design: Ideal for applications requiring a compact and lightweight connector solution. Its miniature size is perfect for space-constrained environments.
• High-Quality Sturcturere: Manufactured in Xi'an, China, with a durable Kovar Alloy outer conductor with Gold Plated, ensuring excellent conductivity and reliability.
• Wide Frequency Range: Suitable for high-frequency applications within the 0.04GHz to 40GHz range.
• Hermetic Sealing: Rated at 1.01325 X 10-3 Pa.cm3/s, providing a tight seal to prevent leakage of gases or liquids, making it ideal for environments requiring high protection against environmental factors.
• Superior Insulation: Glass (Green) insulator, offering excellent insulation properties for reliable performance in challenging conditions.

Technical Parameters:

Outline Dimention of CSMP RF Male Connector for PCB Mount :

Board to Board Solution:

CSMP Male Connector (Full detent) + CSMP Female Adapter + CSMP Male Connector (Smooth bore)

Applications:

The Hermetically Sealed CSMP Connector is versatile and can be used in:

• Aerospace
• Telecommunications
• Aviation
• Navigation
• Satelite
• Radar
• Industrial & electronics

Its miniature size, wide frequency range, and hermetic sealing make it a dependable choice for demanding environments.

Customization:

Product Customization Services for CSMP RF Connector:

Product customization services are available for the minitype SMP, mini-size SMP, and minisize SMP.

MOQ: 200 pcs

Packing and Shipping:

This CSMP RF Connector is carefully packaged to ensure safe delivery to your doorstep.

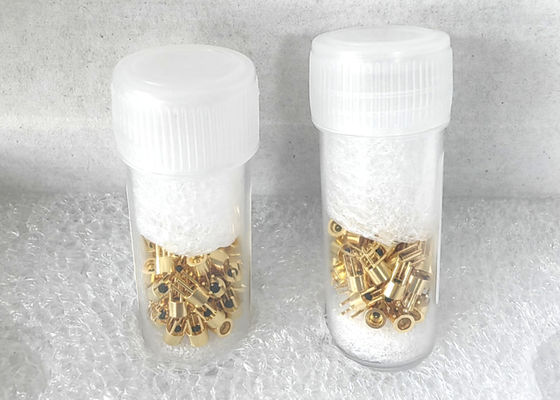

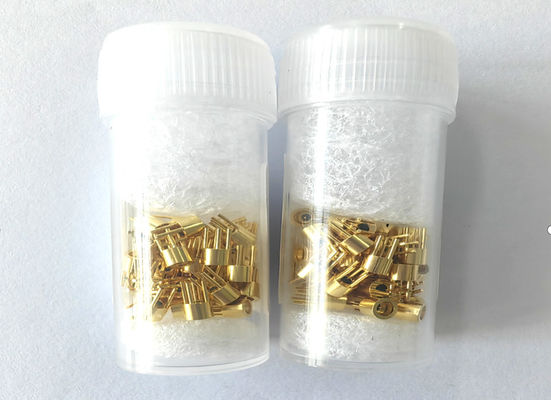

Package: 50pcs/ Plastic bottle

Size of Outer Carton: 21.5*15.5*12cm (0.040 CBM)

Note: The Outer Carton can hold Two Small Carton
