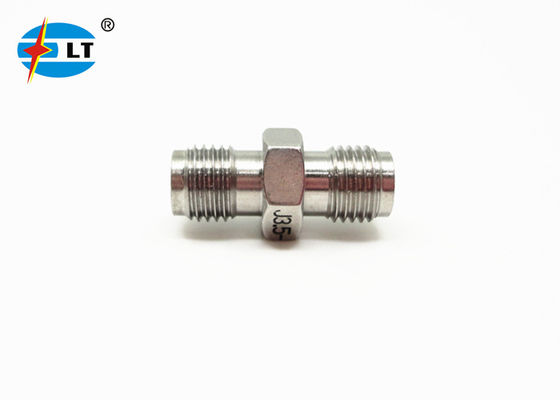

33GHz 3.5mm Female to Female Adapter Millimeter Wave Adapter

33GHz 3.5mm Female to Female Adapter Millimeter Wave Adapter
33GHz 3.5mm Female to Female Adapter Millimeter Wave Adapter
video play

Large Image :  33GHz 3.5mm Female to Female Adapter Millimeter Wave Adapter Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: CE,ROHS
Model Number: 3.5-KKG
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35000pcs/year
Detailed Product Description
Material: Stainless Steel Gender: Female
Product Name: 3.5mm Adaptor Keywords: MMW Adaptor Connectors
Item: Millimeter Wave Connectors Application: RF
Surface Plating: Passivated Connector Type: Straight RF Connectors
High Light:

33GHz 3.5 Mm Female To Female Adapter

,

Millimeter Wave 3.5 Mm Female To Female Adapter

,

33GHz female to female 3.5 mm adapter

3.5mm Female to 3.5mm Millimeter Wave Female to Female Adapter



3.5 series is a common used millimeter wave connector, the frequency is 33GHz (up to 36GHz), use air interface, can mate and interchange with SMA series, K series connectors with advantages of great bandwidth, high reliability, it is widely used in microwave measurement and millimeter wave devices.


The high precision 50Ohm coaxial 3.5mm to 3.5mm adaptor for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.



Interface Dimension(mm):
33GHz 3.5mm Female to Female Adapter Millimeter Wave Adapter 0


Specification:


Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~33GHz
Rated Voltage
335VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
1000VRMS (Maximum sea-level)
Insulation Resistance
≥5000MΩ

Contact Resistance
Outer conductor
≤2mΩ
Center conductor
≤3mΩ
VSMR
≤1.01+0.05f


Outline Drawing(Unit:mm)

33GHz 3.5mm Female to Female Adapter Millimeter Wave Adapter 1
33GHz 3.5mm Female to Female Adapter Millimeter Wave Adapter 2

Application:


* Avionics, radars
* Navigation systems
* Missiles and guidance systems

* Research centres
* Satellite communications
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications



Packaging & Delivery:


* Standard Export Carton
* According to customers' requirements



NOTE:
We have over 10,000 types of MMW Adapter, if the connector you are using is not found, please contact us with your details.
