50Ohm Flange SMA Female Right Angle Connector 2 Holes

50Ohm Flange SMA Female Right Angle Connector 2 Holes
50Ohm Flange SMA Female Right Angle Connector 2 Holes 50Ohm Flange SMA Female Right Angle Connector 2 Holes

Large Image :  50Ohm Flange SMA Female Right Angle Connector 2 Holes Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS ISO-9001-2015
Model Number: SMA-KWFD196
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within in 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000000 Pieces Per Month
Detailed Product Description
Product Name: SMA RF Coaxial Conector Life Span: 500 Cycles
Gender: Female/Socket Body Type: Straight
Material: Brass Mount Method: Flange Mount
Plating: Gold Plating Imdepence: 50Ohm
Certificate: ISO-9001-2015,CE Rohs
High Light:

50 Ohm SMA Female Right Angle Connector

,

2 Hole SMA Female Right Angle Connector

,

50 Ohm right angle female connector

50Ohm 2 Holes Flange SMA Female Right Angle Connector



SMA RF Connector Introduction

1. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.

2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.

3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz.

4. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.

Features and Benefits

  • Wide variety of orientations and PCB terminations

  • Frequency range up to 18GHz Sub-miniature coaxial connectors

  • Using a threaded interface

  • Available in passivation or gold plating

  • Brass and stainless steel material options

  • Available in straight or right angle versions

  • With bulkhead, 2 holes panel, 4 holes panel or mountless options.

  • Broad range with male, female and adapters variants.

  • RoHS compliant

Specification

Electronic and Material Characterials
Impedance 50Ohm
Frequency Range DC~18GHz
Rated Voltage 335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 1000 VRMS (Maximum sea-level)
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center conductor Male Brass gold plated
Female Beryllium copper        gold plated
Shell and other metal parts Brass gold plated
Cable sheath Brass nickle plated
Insulator PTFE
Seal ring Silicon rubber
Mating torque 0.79 -1.13 N.m

Detailed Drawing:

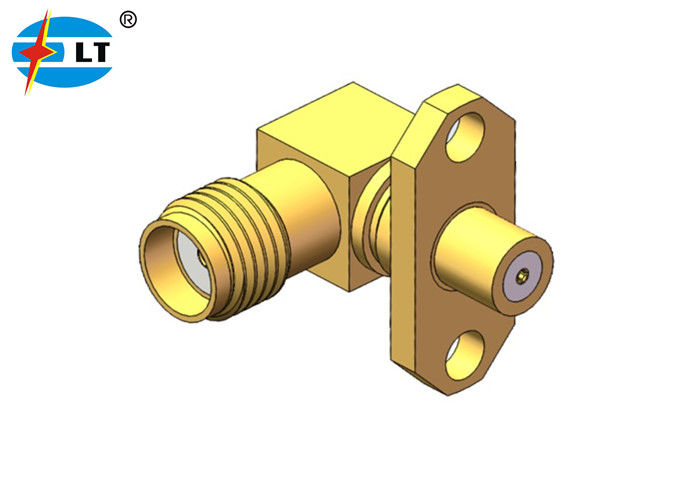

50Ohm Flange SMA Female Right Angle Connector 2 Holes 0

Applications

  • Antennas
  • Board-to-board interconnect
  • Telecommunications
  • Instrumentation

Product Cataloge:

RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
N Type RF Connector
TNC RF Connector
MCX/MMCX RF Connector
BNC RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)


NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your detai
