Microwave 0.3dB SMA RF Connector SMA Female Right Angle Connector

Microwave 0.3dB SMA RF Connector SMA Female Right Angle Connector
Microwave 0.3dB SMA RF Connector SMA Female Right Angle Connector Microwave 0.3dB SMA RF Connector SMA Female Right Angle Connector

Large Image :  Microwave 0.3dB SMA RF Connector SMA Female Right Angle Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS, ISO-9001-2015
Model Number: SMA-KWFD168
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3-4 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1,000,00 Pieces Per Month
Detailed Product Description
Product Name: SMA RF Conector Plating: Gold Plated
Gender: Female Impedance: 50Ω
Frequency: DC~18GHz Durability: 500 Cycles
Application: Communication
High Light:

0.30dB SMA RF Connector

,

0.30dB SMA Female Right Angle Connector

,

Microwave SMA Female Right Angle Connector

 Gold Plating SMA Female Right Angle Connector for Microwave

1. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).



Specifiacation:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 18GHz
Insertion Loss ≤0.30dB
VSWR ≤1.2(DC-6GHz)
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE

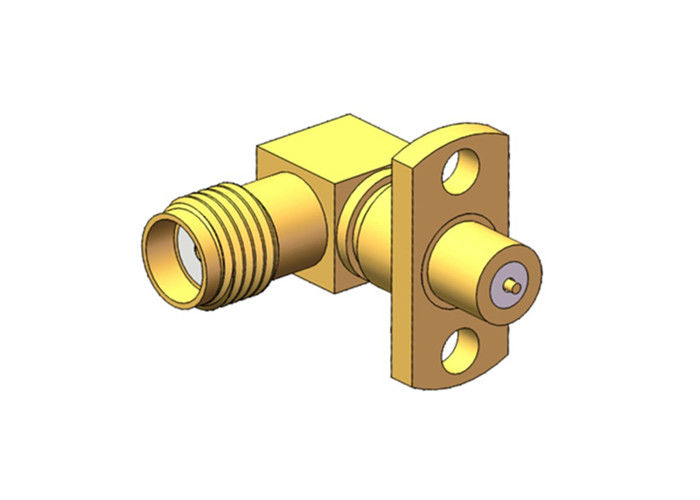

Gold Plating SMA Female Right Angle Connector for Microwave

Microwave 0.3dB SMA RF Connector SMA Female Right Angle Connector 0



Key Features:

1.Frequency range up to 18GHz Sub-miniature coaxial connectors

2.Using a threaded interface
3.Available in passivation or gold plating
4.Brass and stainless steel material options
5.Wide variety of orientations and PCB terminations
6.Available in straight or right angle versions
7.With bulkhead, 2 holes panel, 4 holes panel or mountless options.
8.Broad range with male, female and adapters variants.
9.RoHS compliant



Applications:
Microwave Systems

Telecommunications
5G Solutions
Measurement Systems
Mobile Telephone WiFi Antennas Systems



NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
