|Product Name:||SMA RF Adapter||Plating:||Gold Plated|
|Durability:||500 Cycles||Application:||RF, Satcom /Antenna/Audio|
Female To Female SMA RF Connector,
50Ohm SMA RF Connector,
50Ohm sma female to female connector
High Performance SMA RF Adapters:
1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).
|Center Resistance||Center Conductor||≤3.0mΩ|
|Crimping Sleeve||0.79－1.13N .m|
Material & Mechanical Characteristics:
Nickle Plated/Gold Plated
Beryllium copper (female)
|Outer Contact||Beryllium copper||Nickle Plated/Gold Plated|
More Detail of
SMA Female to Female RF Coaxial Connector Adapter :

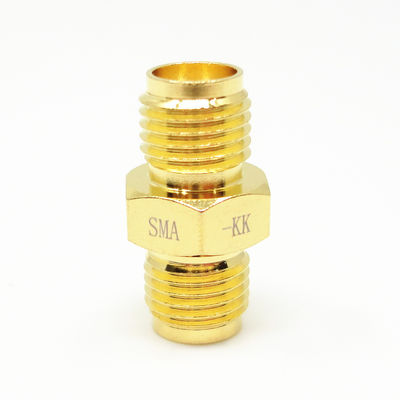

|SMA-KK||SMA female to female rf coaxial adapter|
|SMA-KKG||Stainless steel SMA female to female rf coaxial adapter|
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
