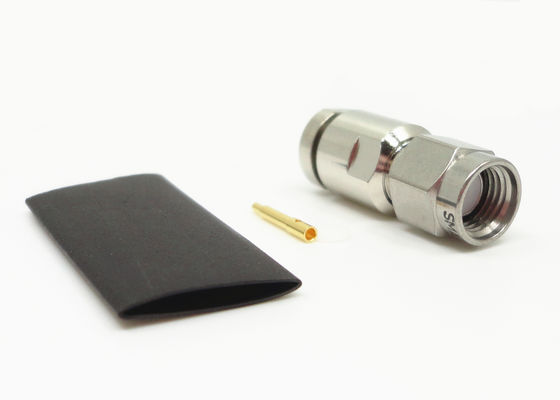

50Ohm SMA Straight Male Plug Adapter RG142 Cable

50Ohm SMA Straight Male Plug Adapter RG142 Cable
50Ohm SMA Straight Male Plug Adapter RG142 Cable
video play

Large Image :  50Ohm SMA Straight Male Plug Adapter RG142 Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS, ISO-9001-2015
Model Number: SMA-J142BG
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3-4 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1,000,00 Pieces Per Month
Detailed Product Description
Product Name: SMA RF Conector Plating: Passivated
Vswr: ≤1.3 Mounting Type: Flange Mount
Working Voltage: 335V R.m.s At Sea Level Frequency Range: DC To 18GHz
Body: Brass Gender: Male
Insulator: PTFE
High Light:

RG142 Cable Male Plug adapter

,

50 Ohm Male Plug adapter

,

RG142 Cable sma male plug



50Ohm SMA Straight Male Plug Connector RG142 Cable



1.SMA 50Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 20GHz and outstanding mechanical durability.

2.SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz

3.SMA RF connecons.tors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 holes panel configuration

4.Built in accordance with MIL-C-39012, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.



Specifiacation of SMA Rf Connectors:



Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 18GHz
Insertion Loss ≤0.30dB
VSWR ≤1.2(DC-6GHz)
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃



50Ohm SMA Straight Male Plug Adapter RG142 Cable 050Ohm SMA Straight Male Plug Adapter RG142 Cable 1



Outline Drawing of SMA RF Coax Connectors:




Material & Mechanical Characteristics:



Material & Mechanical Characteristics
Center Conductor Male Brass Gold plated
Female Sn-P Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Brass Nickel plated
Stainless Passivation
Crimping Sleeve Brass Nickel plated
Tightening torque of connection 0.79-1.13N .m
Durability 500 cycles
Sealing Ring Silicone Rubber
Insulators PTFE



Key Features:

  • Using a threaded interface
  • Frequency range up to 18GHz Sub-miniature coaxial connectors
  • Available in passivation or gold plating
  • Wide variety of orientations and PCB terminations
  • Available in straight or right angle versions
  • With bulkhead, 2 holes panel, 4 holes panel or mountless options.
  • Broad range with male, female and adapters variants.
  • Brass and stainless steel material options

Applications

  • Telecommunications
  • Base Stations
  • Antennas
  • Instrumentation
  • 5G Solution

Product Cataloge:

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints



NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
