Gold Plated Hermetic Multi Pin Connector Kovar Alloy 4J29 Glass To Metal Seals

China Gold Plated Hermetic Multi Pin Connector Kovar Alloy 4J29 Glass To Metal Seals supplier
Gold Plated Hermetic Multi Pin Connector Kovar Alloy 4J29 Glass To Metal Seals supplier Gold Plated Hermetic Multi Pin Connector Kovar Alloy 4J29 Glass To Metal Seals supplier Gold Plated Hermetic Multi Pin Connector Kovar Alloy 4J29 Glass To Metal Seals supplier Gold Plated Hermetic Multi Pin Connector Kovar Alloy 4J29 Glass To Metal Seals supplier

Large Image :  Gold Plated Hermetic Multi Pin Connector Kovar Alloy 4J29 Glass To Metal Seals

Product Details:

Place of Origin: China
Brand Name: ELT
Certification: ROHS ISO-9001-2015
Model Number: JMC-900

Payment & Shipping Terms:

Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 Weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 30,000,000 pcs per year
Contact Now
Detailed Product Description
Product Name: Glass To Metal Multi-pin Headers Impedance: Other
Pin: 9 Pins Pin Material: Kovar 4J29
Plating: Gold Plated Glass: 7052,7070, DM308
Hermecity: <1.01325 X 10E-08 Std.cc/s Certificate: ROHS ISO-9001-2015

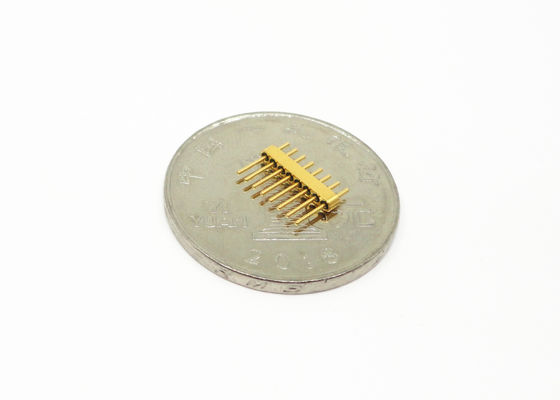

 8 Pins Hermetic Multi Pin Headers Kovar Alloy 4J29 Glass To Metal Seals



Hermetic Multi-pin Headers / Glass to Metal Seals RF / DC Feedthroughs /Glass Beads is also called Glass insulator, Hermetic Header. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.



The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc.



Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

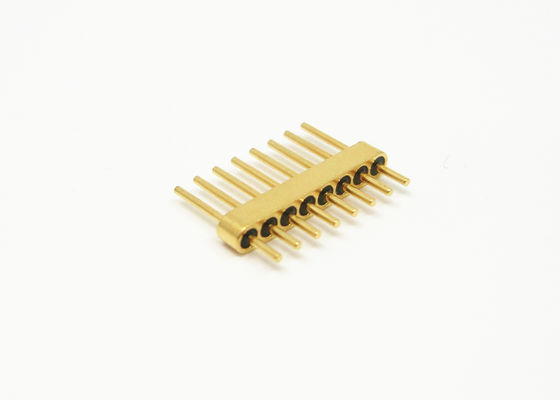

 Gold Plated Hermetic Multi Pin Connector Kovar Alloy 4J29 Glass To Metal Seals

Features:

- Small size

- lightweight

- Hermetic

- Stable quality and high reliability

- Inner conductor: Gold wire bonding, soldering and mating method for choice



Advantages:
- Military Grade with 1.27um gold plated
- Strict tolerance control
Standard and custom design for choice.
- High cost-effective products and services
- Large stocks for standard sizes
- Fast delivery for custom products


Application:

Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.



Specification:

Product Name Glass to Metal Multi-pin Headers
Impedance other
Type  8 pins
Raws 1 row
Color Gold plated
Housing and pin material Kovar 4J29
Glass material
Glass Color
7050 or 7070 type or DM308
Green or White
Freqecncy Range DC~50 GHz
VSWR ≤1.2
Withstand Voltage ≥300V
Hermecity <1.01325 X 10E-08 std.cc/s
Insulation Resistance ≥2000MΩ for single pin, ≥1000MΩ for multi-pin,
Operating temperature -65℃~+260℃



Detailed Image

Unit:mm
 Gold Plated Hermetic Multi Pin Connector Kovar Alloy 4J29 Glass To Metal Seals


Product List:

50Ω RF Single-pin JM Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Standard Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Non-Standard Series Soldering Mating and Bonding choice
DC Single-pin JK Series Soldering and Bonding choice
DC Single-pin JK Standard Series Soldering and Bonding choice
DC Single-pin JK Non-Standard Series Soldering and Nail Head Bonding choice
Multi-pin Header JMC Series
1-9 pins with 1-3 raws choice
Custom dimensions

Wide range


NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.
