9 Pins 0.5mm Hermetically Sealed Connectors / Multi Pin Rf Connector ROHS

I'm Online Chat Now
Certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
Product was exactly as expected and of high quality. Service was excellent. Will definitely order from again.

—— Gregory,USA

Understood my requirements and sought the right parts.

—— Ian, New Zealand

It has been a great pleasure dealing with you and thank you for your help and suggestion. Hope that there will be more copperation in the near future.

—— Terence, Singapore

The SMP connectors are high quality, the leak rate can reach 1*10^-9 mbar*l/s. A great deal with such an economic price.

—— Jonh,United States

Professional Seller

—— Abdu,Saudi Arabia

9 Pins 0.5mm Hermetically Sealed Connectors / Multi Pin Rf Connector ROHS

9 Pins 0.5mm Hermetically Sealed Connectors / Multi Pin Rf Connector ROHS
9 Pins 0.5mm Hermetically Sealed Connectors / Multi Pin Rf Connector ROHS 9 Pins 0.5mm Hermetically Sealed Connectors / Multi Pin Rf Connector ROHS 9 Pins 0.5mm Hermetically Sealed Connectors / Multi Pin Rf Connector ROHS 9 Pins 0.5mm Hermetically Sealed Connectors / Multi Pin Rf Connector ROHS

Large Image :  9 Pins 0.5mm Hermetically Sealed Connectors / Multi Pin Rf Connector ROHS Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: ROHS ISO-9001-2015
Model Number: JMC-149
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 Weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 30,000,000 pcs per year
Detailed Product Description
Product Name: Glass To Metal Multi-pin Headers Plating: Gold Plated
Impedance: Other Pin: 9 Pins
Pin Material: Kovar 4J29 Glass: 7052,7070, DM308
Hermecity: <1.01325 X 10E-08 Std.cc/s Certificate: ROHS ISO-9001-2015
Highlight:

hermetically sealed electrical connectors

,

mini rf connector

9 Pins Multi Pin Headers Kovar Alloy Hermetic Glass To Metal Seal Feedthru



Hermetic Multi-pin Headers / Glass to Metal Seals RF / DC Feedthroughs /Glass Beads is also called Glass insulator, Hermetic Header. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.



The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc.



Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

9 Pins 0.5mm Hermetically Sealed Connectors / Multi Pin Rf Connector ROHS 0Catalog-Glass-to-Metal Hermetic Seals.pdf

Specification:

Product Name Glass to Metal Multi-pin Headers
Impedance other
Type 9 pins
Rows 1 row
Color Gold plated
Housing and pin material Kovar 4J29
Glass material
Glass Color
7050 or 7070 type or DM308
Green or White
Freqecncy Range NA
VSWR NA
Withstand Voltage ≥300V

Hermecity

Leak Rate

<1.01325 X 10-3 Pa*cm3/s
< 1X 10-9 mbar*l/s
< 1 x 10-9 ccHe/sec @ 1 atm
Insulation Resistance ≥2000MΩ for single pin, ≥1000MΩ for multi-pin,
Operating temperature -65℃~+260℃



Features:

- Small size

- lightweight

- Hermetic

Stable quality and high reliability

-  Inner conductor: Gold wire bonding, soldering and mating method for choice





Advantages:
-  Military Grade with 1.27um gold plated
- Strict tolerance control
Standard and custom design for choice.
- High cost-effective products and services
- Large stocks for standard sizes
- Fast delivery for custom products


Application:

Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.



Outline Drawing and Picture

Unit:mm

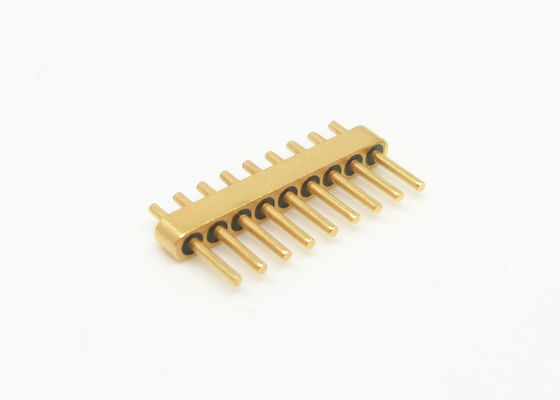

 9 Pins 0.5mm Hermetically Sealed Connectors / Multi Pin Rf Connector ROHS 1

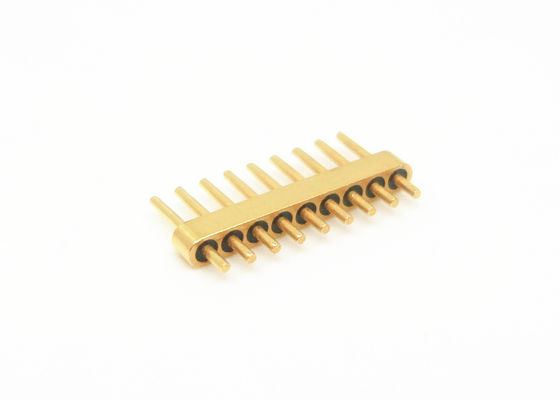

                        9 Pins 0.5mm Hermetically Sealed Connectors / Multi Pin Rf Connector ROHS 2



Product List:

50Ω RF Single-pin JM Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Standard Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Non-Standard Series Soldering Mating and Bonding choice
DC Single-pin JK Series Soldering and Bonding choice
DC Single-pin JK Standard Series Soldering and Bonding choice
DC Single-pin JK Non-Standard Series Soldering and Nail Head Bonding choice
Multi-pin Header JMC Series
1-9 pins with 1-3 rows choice
Custom dimensions

Wide range

 Optimal Hermetic Seals-ELT.pdf
NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.

9 Pins 0.5mm Hermetically Sealed Connectors / Multi Pin Rf Connector ROHS 3

Contact Details
Xi'an Elite Electronic Industry Co., Ltd.

Contact Person: Elite

Tel: +8613609167652

Send your inquiry directly to us
