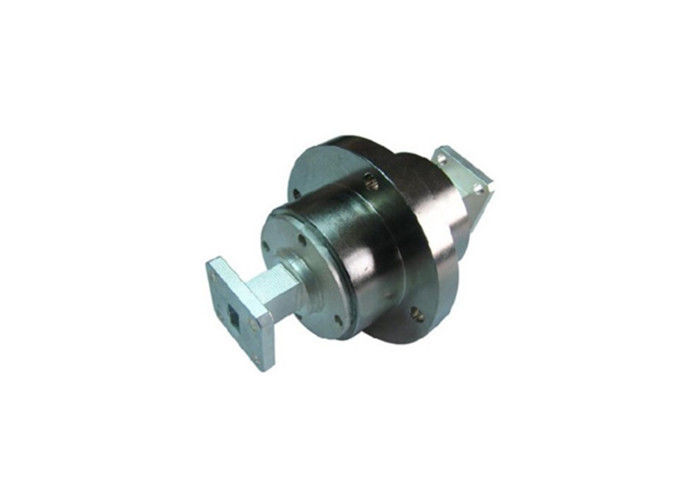

| Product Name: | Microwave Rotary (Joint) | Input And Output: | BJ320(WR28)/ BJ320(WR28) |
|---|---|---|---|
| Frequency: | 32-39GHz | VSWR: | ≤1.5 |
| Insertion Loss: | 0.5dB | Material: | Brass |
| High Light: | coaxial rotary joint,rf coaxial rotary joint |
||
Microwave rotary joint is essential part to guarantee the normal work of microwave rotary antenna. When the antenna is constantly rotating, the microwave signal is transmitted from the transmitter to the antenna, or from the antenna to the receiver, the azimuth and pitching search is realized.
Our company can design and produce various single channel coaxial rotary joint, multichannel rotary joint, MMW rotary joint, product with characteristics of small standing wave, low loss, small phase fluctuation, high integration, etc, it’s widely used in microwave devices of radar, navigation, surveillance,etc.
| Working temperature | -40-+70°C |
| Frequency | 32-39GHz |
| Input and output | BJ320(WR28)/ BJ320(WR28) |
| VSWR | ≤1.5 |
| VSWR fluctuation | 0.1 |
| Insertion loss | 0.5dB |
| Insertion loss fluctuation | 0.1dB |
| Speed | 10 revolutions per minute |
Detailed Drawing
