Nickel Plated 50 Ohm SMB Straight Crimp Electronic RF Plug Push Pull Connector

I'm Online Chat Now
Certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
Product was exactly as expected and of high quality. Service was excellent. Will definitely order from again.

—— Gregory,USA

Understood my requirements and sought the right parts.

—— Ian, New Zealand

It has been a great pleasure dealing with you and thank you for your help and suggestion. Hope that there will be more copperation in the near future.

—— Terence, Singapore

The SMP connectors are high quality, the leak rate can reach 1*10^-9 mbar*l/s. A great deal with such an economic price.

—— Jonh,United States

Professional Seller

—— Abdu,Saudi Arabia

Nickel Plated 50 Ohm SMB Straight Crimp Electronic RF Plug Push Pull Connector

Nickel Plated 50 Ohm SMB Straight Crimp Electronic RF Plug Push Pull Connector
Nickel Plated 50 Ohm SMB Straight Crimp Electronic RF Plug Push Pull Connector Nickel Plated 50 Ohm SMB Straight Crimp Electronic RF Plug Push Pull Connector Nickel Plated 50 Ohm SMB Straight Crimp Electronic RF Plug Push Pull Connector Nickel Plated 50 Ohm SMB Straight Crimp Electronic RF Plug Push Pull Connector

Large Image :  Nickel Plated 50 Ohm SMB Straight Crimp Electronic RF Plug Push Pull Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SMB
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Detailed Product Description
Product Name: SMB RF Conector Plating: Nickel / Gold Plated
Durability: 500 Cycles Contact Material: Brass, BeCu
Material: Brass Design Standard:: IEC 1169-33
Type: Straight Gender: Male
High Light:

coaxial antenna connector

,

miniature rf connectors

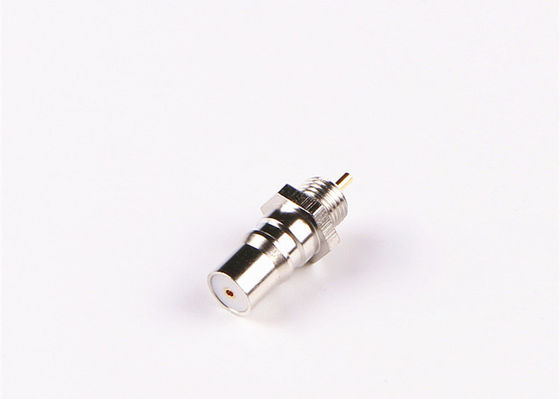

Nickel Plated 50 Ohm SMB Straight Crimp Electronic RF Plug Push Pull Connector



SMB series connector is a kinds of a miniature push-on insertion stop RF coaxial connector, with the characteristics of small volume, light weight, excellent easy use and high reliability etc, which is suitable for radio equipment and high-frequency circuits of electronic equipment. They use a snap-on mating to reduce installation time. Various plating options In nickel, gold, and tin lead. Selective plating provides corrosion resistance finish and good solder ability characteristics.



Nickel Plated 50 Ohm SMB Straight Crimp Electronic RF Plug Push Pull Connector 0

Specification


Electrical Characteristics
Impedance 50 Ohm
Frequency Range DC~4GHz
Rated Voltage 250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 750VRMS (Maximum sea-level)
Insulation Resistance >=5000MOhm
Contact Resistance Outer conductor <=6mOhm
Center conductor <=1.5 mOhm
VSMR <=1.3
Insertion Loss ≤0.30dB





Product Detail

Nickel Plated 50 Ohm SMB Straight Crimp Electronic RF Plug Push Pull Connector 1Nickel Plated 50 Ohm SMB Straight Crimp Electronic RF Plug Push Pull Connector 2





Material & Mechanical Characteristics
Center Conductor Male/Plug Brass Gold plated
Female/Socket Sn-P bronze Gold plated
Resilience Contact Beryllium bronze Nickel Plated
Shell / Housing Brass,stainless steel Nickel Plated
Insulators PTFE
Sealing Ring Silicone Rubber
Durability 500 cycles





RoHS Compliant Yes
Mating Cycles 500Cycles
Contact Retention 10N min
Cable Retention 100N min
Mating Force 0.6N max
Un-Coupling Force 0.6 N max


Environmental Specification:


Operating Temperature -65 to +165Deg C
IP Rating ( Mated ) IP64



Features:


- 50 Ohm impedance

- Low cost combined with high quality.

- Broadband performance with low reflection from DC to 18 GHz.
- Accommodates a wide range of miniature RG flexible semi-rigid coaxial cables
- BNC connectors are available in straight or right angle versions, as well as, bulkhead, 2 hole panel, 4 hole panel or mountless options.

- Available for affixement to industry standard cable and as a printed circuit board device

- Provide repeatable performance


Application:


* Broadband

* Instrumentation

* Antennas

* Telecom

* Computers

* Broadcast

* Video systems

* Automotive

* Mil/Aero

* Telecommunications

* Wireless industries

* Measurement equipment


NOTE:

We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
