| Product Name: | TNC Conector | Plating: | Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Durability: | 500 Cycles |
| Contact Material: | Brass, BeCu | Material: | Brass |
| Type: | Straight | ||
| Highlight: | tnc bulkhead connector,tnc jack connector |
||

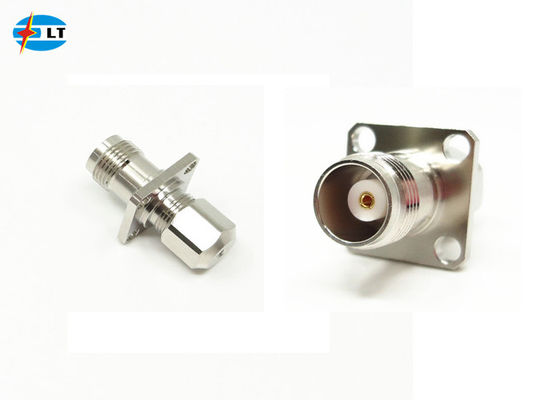

TNC Straight Female 4-hole Flange RF Coaxial Connector for SFF-50-1.5-1/SYV-50-2-1 Cable
TNC series product is designed as a threaded version of BNC connector, the TNC RF connectors features screw threads for mating.TNC connectors are miniature, threaded waterproof units with a constant 50ohm impedance,operating from DC-11ghZ, there are two types of TNC connectors:standard and reverse polarity.these low cost connector typically utilize die cast and molded components.While performance will not be equal to the industrial or military grade products,these connectors are ideal for use on a varity of commercial applications. Widely used for antenna connections, TNC have many applications in avionics, defence, communications and general industrial markets. Reverse polarity and 75 ohm TNC are also available.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~4GHz
|
|||
|
Rated Voltage
|
2500VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
750VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥2000MΩ
|
|||
|
Contact Resistance
|
Outer conductor
|
≤6mΩ
|
||
|
Center conductor
|
≤1.5mΩ
|
|||
|
VSMR
|
≤1.3
|
|||
Mechanical Specification
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
Detailed Drawing
Features:
1, While performance will not be equal to the industrial or military grade products,these RF crimp connectors are ideal for use on a varity of commercial applications
2, TNC series RF Electronic connector is designed as a threaded version of BNC connector.
3, TNC RF connectors features screw threads for mating. RF TNC connectors are miniature, threaded waterproof units with a constant 50ohm impedance,operating fromDC-11ghz
4, There are two types of TNC connectors:standard and reverse polarity
5, These low cost china supplier factory RF connector typically utilize die cast and molded components.
6,The TNC series products are a kind of whorl joining, it has work width frequently,join reliable.
Application:
1. Wireless Communication:
TNC connectors are widely used in wireless communication systems such as base stations, antenna systems and radio equipment. Its excellent electrical performance ensures stable and efficient signal transmission.
2. Test and Measurement Equipment:
In electronic test and measurement equipment, TNC connectors are used to connect signal generators, spectrum analyzers and other measurement instruments. Their high precision and low loss characteristics make them ideal for test equipment.
3. Industrial Automation:
In industrial automation control systems, TNC connectors are used to connect a variety of sensors and controllers to ensure accurate and real-time data transmission.
4. Scientific Research:
In scientific research, especially in physics experiments and astronomical observation equipment, TNC connectors are used to connect high-frequency signal sources and receiving equipment to provide high-fidelity signal transmission.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
