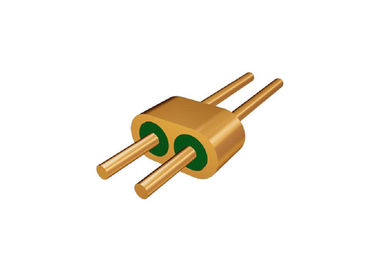

Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29

Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29
Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29 Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29 Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29 Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29

Large Image :  Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29 Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: ROHS ISO-9001-2015
Model Number: JMC-273
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 Weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 300,000,000 pcs per year
Detailed Product Description
Product Name: Glass To Metal Multi-pin Headers Plating: 1.27 Um Gold Plated
Impedance: Other Certificate: ROHS ISO-9001-2015
Pin: 2-pin Material: Kovar 4J29
Glass Type: 7052,7070, DM308 Hermecity: <1.01325 X 10E-08 Std.cc/s
Highlight:

hermetic electrical connectors

,

mini rf connector

  Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29

Specification:

Product Name Multi-pin Headers
Impedance other
Type 2 pins
Rows 1 row
Color Gold plated
Body material Kovar 4J29
Glass material
Glass Color
7050 or 7070 type or DM308
Green or White
Freqecncy Range NA
VSWR NA
Withstand Voltage ≥300V

Hermecity

Leak Rate

< 1.01325 X 10-3 Pa*cm3/s
< 1X 10-9 mbar*l/s
< 1 x 10-9 ccHe/sec @ 1 atm
Insulation Resistance ≥2000MΩ for single pin, ≥1000MΩ for multi-pin,
Operating Temperature -65℃~+260℃



Multi-pin Headers  is also called Glass insulator.They are one of the most critical components for seal assemblies. Dielectrics and supporting materials are made of glass with low dielectric constant and low dielectric loss.



Both inner conductor(pin/contact) and outer conductor(ferrule/outer ring) are made of Kovar alloy and sintered at high temperature. The surface is plated with gold. Inner conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, reliable and have been widespread in electronics manufacturing industries recent years.

Catalog-Glass-to-Metal Hermetic Seals.pdf



Features:

-Small size

-lightweight

-Hermetic

-Stable quality and high reliability

-Inner conductor: Gold wire bonding, soldering and mating method for choice



Advantages:
-Military Grade with 1.27um gold plated
-Strict tolerance control
-Standard and custom design for choice.
-High cost-effective products and services
-Large stocks for standard sizes
-Fast delivery for custom products


Application:

Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.





Detailed Image

Unit:mm

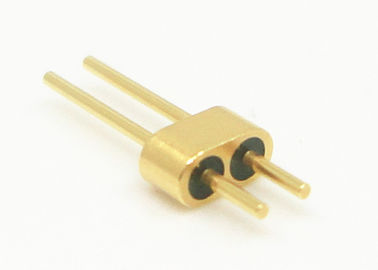

       Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29 0

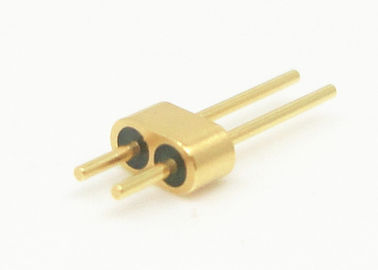

Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29 1             Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29 2



Product List:

50Ω RF Single-pin JM Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Standard Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Non-Standard Series Soldering Mating and Bonding choice
DC Single-pin JK Series Soldering and Bonding choice
DC Single-pin JK Standard Series Soldering and Bonding choice
DC Single-pin JK Non-Standard Series Soldering and Nail Head Bonding choice
Multi-pin Header JMC Series
1-9 pins with 1-3 rows choice
Custom dimensions

Wide range


NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.

Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29 3

Contact Details
Xi'an Elite Electronic Industry Co., Ltd.

Contact Person: Elite

Tel: +8613609167652

Send your inquiry directly to us
