| Product Name: | SMA RF Coaxial Conector | Plating: | Gold Plated |
|---|---|---|---|
| Gender: | Male | Impedance: | 50Ω |
| Frequency: | DC~18GHz | Durability: | 500 Cycles |
| Application: | Antenna Microwave RG405 | Material: | Brass |
| Highlight: | sma antenna connector,sma coax connector |
||
SMA series is a kinds of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics. It is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.
Advantages:
1. Quick connect, push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 hole panel configurations
2. High quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz
More Pictures of

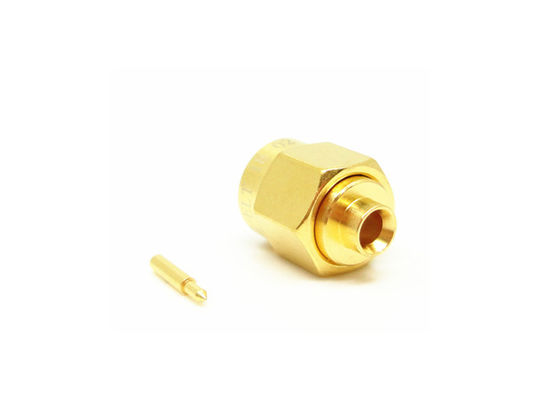

Gold Plated Male Plug SMA RF Connector Durable For Antenna Microwave RG405:
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
| Material and Mechanical Characteristics: | |||
| Center Conductor | Male/Plug | Brass | Gold Plated |
| Female/Socket | Beryllium Bronze | Gold Plated | |
| Resilient Contact | Beryllium Bronze | Nickel Plated | |
| Shell/Housing | Brass | Gold Plated | |
| Shell/Housing | Stainless Steel | Passivated | |
| Insulator | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500cycles | ||
| Torque | 0.79~1.13N.m | ||
| *Other material and finish coating can be customzied | |||
