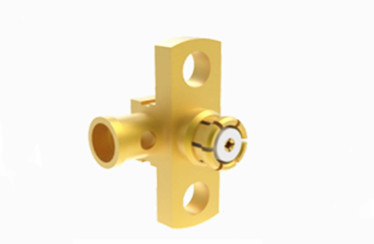

Brass SMP Female Right Angle Flange Mount RF Socket for CXN3506/MF108A Cable
The SMP interface empowers design engineers to enhance both the performance and intricacy of their designs while concurrently optimizing the form factory.
The SMP interconnect series utilizes a floating female-to-female adapter (frequently called a bullet) to facilitate the stacking of boards equipped with SMP male connectors and PCB connectors. This robust construction endows the product line with the capacity to:
*Endure radial and axial misalignments
*Resist deterioration in electrical performance over multiple mating and unmating cycles
Note:The specific data of the model are based on the data in the product specification sheet.
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor
|
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.4 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| VSWR other | ≤1.3 | |||
| Center Conductor | Male |
Tin Phosphor Bronze/Kovar Alloy
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
brass/beryllium bronze/Kovar Alloy/copper alloy stainless steel passivated
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-3 Pa·cm3 /s
|
|||

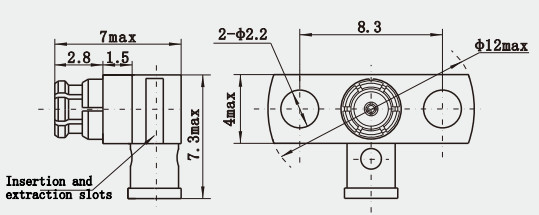

Outline Drawing of Brass SMP Female Right Angle Flange Mount RF Socket for CXN3506/MF108A Cable
Related SMP female connectors
1.
2.
3.
4.
Install Introduction:
Application:
1. Wireless Communication Devices: In mobile phones, wireless routers, wireless gateways, and other portable or fixed wireless communication devices, SMP connectors are used for antenna connections.
2. Test and Measurement: SMP connectors are found in RF test and measurement instruments such as network analyzers, spectrum analyzers, and signal generators to ensure precise signal transmission.
3. IoT Devices: In various sensors, smart home appliances, industrial automation controllers, and other IoT applications, SMP connectors provide a small and reliable interconnection solution.
4. Broadband Applications: Given their good bandwidth performance, SMP connectors are suitable for broadband signal distribution and transmission, such as in CATV and fiber-optic communication systems for signal routing.
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
