Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP RF Coaxial Conector | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | ROHS ISO-9001-2015 | Durability: | 500 Cycles |
| Gender: | Female | Body Style: | Right Angle |
| Material: | Brass | Mount Method: | For Cable |
| Plating: | Gold Plating |

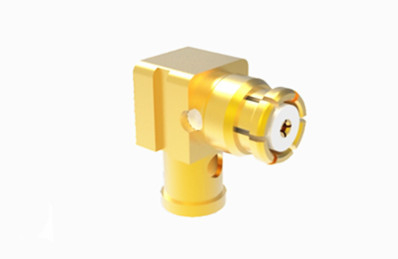

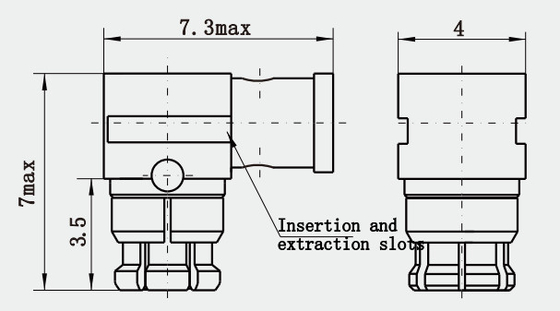

SMP Female Right Angle Gold Plated RF Connector for CXN3506/MF108A Cable
The SMP interface is a subminiature connector that matches the size of MMCX connectors but extends the operational frequency range from DC to 40 GHz. The SMP interconnect series utilizes floating female-to-female adapters, often referred to as "bullets," to facilitate the stacking of circuit boards equipped with SMP male PCB connectors. This robust construction, along with its capacity to accommodate radial and axial misalignments, enables blind mating solutions. It is widely used in compact high-frequency coaxial modules.
1. Compact Size: SMP connectors are designed for applications where space is at a premium and are similar in size to MMCX (Micro-Miniature Coaxial) connectors, yet they are suited for higher frequency ranges.
2. Broad Frequency Range: SMP connectors support a wide bandwidth from DC to 40 GHz, making them suitable for various broadband wireless communication applications.
3. Floating Connector System: SMP interfaces commonly use floating female-to-female adapters (known as bullets), allowing reliable connections even with mechanical alignment tolerances, including radial and axial misalignments.
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
SMP Female Right Angle Gold Plated RF Connector for CXN3506/MF108A Cable:
1. Medical Devices: In the medical industry, particularly in high-frequency medical equipment like endoscopes or surgical tools, SMP connectors can be used to transmit data or video signals.
2. High-Speed Data Transmission: SMP connectors can be used in high-speed backplanes or cable assemblies for data centers, servers, and network equipment for high-speed data transfer.
3. Consumer Electronics: Some high-end consumer electronics, such as digital cameras, smartphones, and tablets, may use SMP connectors for signal or power connections.
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
