| Connector: | SMP | Product Name: | SMP Male Limited Detent Connector |
|---|---|---|---|
| Gender: | Male | Frequency Range: | DC~40GHz |
| Impedance: | 50Ω | Shell Material: | Kovar 4j29 |
| Glass: | 7052 7070 | Shell: | Gold Plated |
| High Light: | PCB Mount RF Connector Plug,Male RA Limited Detent Connector,SMP Series RF Connector Plug |
||

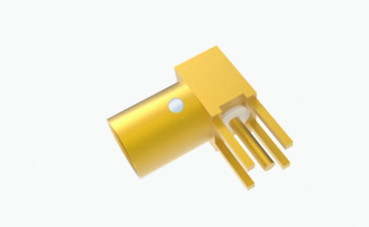

SMP Series Male RA PCB Mount Limited Detent RF Connector Plug
The SMP represents a compact, push-on RF coaxial connector adapter, known for its small dimensions, lightweight construction, remarkable seismic performance, and wide bandwidth capabilities. It is designed to operate at frequency ranges up to 30GHz, with our advanced SMP connectors extending the capability up to 40GHz. The plug offers three interface variants: full detent, limited detent, and smooth bore, including those equipped with a braking feature. These varied interface options are optimized to accommodate the necessary axial or radial movement required in blind mating applications using broad-to-broad connectors. Ideal for installations that call for high reliability and a streamlined modular design, the SMP adapter excels in demanding environments.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

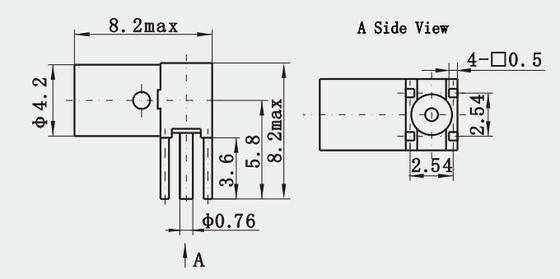

Detailed Drawing
Applications
1. Consumer Electronics: SMP PCB connectors are commonly used in the manufacturing of consumer electronics such as computers, smartphones, tablets, and televisions to interconnect electronic components on the motherboard.
2. Telecommunications Equipment: In telecommunication devices like routers, switches, and base stations, SMP connectors facilitate the connection of different electronic components, ensuring proper operation of the equipment.
3. Automotive Electronics: SMP connectors are used in automotive electronic systems, including car navigation, audio systems, and airbag deployment systems, to provide reliable connections between electronic parts.
Features and Benefits
| Gold plated |
| Sub-miniature |
| DC to 40 GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
