Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP Female To SMP Female RF Adapter | Body Material: | Brass |
|---|---|---|---|
| Impedance: | 50Ohm | Color: | Gold Plated |
| Gender: | Female To Female | Body Style: | Straight |
| Type: | SMP Female RF Adapter | Mount Method: | Blind Mate |
| High Light: | Communication SMP RF adapter,Long Bullet SMP RF adapter,Straight SMP RF adapter |
||

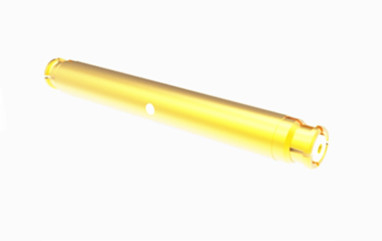

Straight SMP F to F RF Connector/Adapter Long Bullet for Communication
The SMP is a compact push-on type RF coaxial connector adapter, boasting a diminutive size, lightweight design, impressive seismic resistance, and an extensive operational bandwidth. It is engineered to function across frequencies up to 30GHz, with our superior SMP connectors capable of reaching up to 40GHz. The plug design features three distinct interface types: full detent, limited detent, and smooth bore (inclusive of designs with braking mechanisms). These diverse interface options cater to the axial or radial movement necessities within blind mating scenarios involving broad-to-broad connectors. The SMP adapter is particularly suited for setups demanding high reliability and a compact modular configuration.
Note:The specific data of the model are based on the data in the product specification sheet.
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥2000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor
|
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.5 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
| Center Conductor | Male |
Sn-P bronze
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
gold plated brass, passivated stainless steel
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-3 Pa·cm3 /s
|
|||

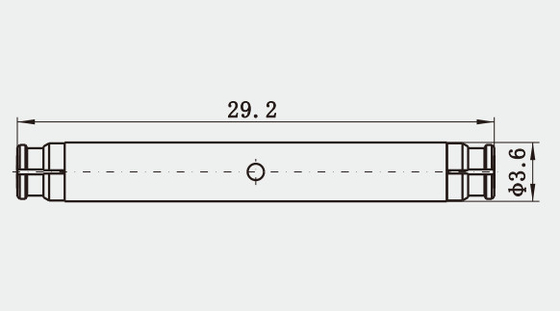

Outline Drawing of
Straight SMP F to F RF Connector/Adapter Long Bullet for Communication
Related SMP female to female Adapters
1.
| Model No. | Description |
| SMP-KWFK | SMP female to female rf adapter, right angle, 2 holes flange. |
2.
| Model No. | Description |
| SMP-KK72 | SMP female to female rf adapter |
3.
| Model No. | L(mm) | |
| SMP-KK59 | 16 | Compression Length:15mm, right end mated with smooth bore only. |
| SMP-KK62T | 13 | Compression Length:12mm, right end mated with smooth bore only. |
| SMP-KK62T-Y1 | 13 | Compression Length:12mm, right end mated with smooth bore only. 192H Salt Fog Resistance |
| SMP-KK190T | 12.7 | Compression Length:11.9mm, right end mated with smooth bore only. |
4.
| Model No. | L(mm) |
| SMP-KK99 | L=9.6, SMP female to female rf adapter |
| SMP-KK166 | L=10.2, SMP female to female rf adapter |
| SMP-KK175 | L=6.7, SMP female to female rf adapter |
| SMP-KK176 | L=7.1, SMP female to female rf adapter |
| SMP-KK177 | L=7.4, SMP female to female rf adapter |
| SMP-KK178 | L=8.1, SMP female to female rf adapter |
| SMP-KK188 | L=10, SMP female to female rf adapter |
| SMP-KK189 | L=9.7, SMP female to female rf adapter |
| SMP-KK192 | L=9, SMP female to female rf adapter |
| SMP-KK239 | L=9.9, SMP female to female rf adapter |
| SMP-KK249 | L=6.7, SMP female to female rf adapter |
5.
| Model No. | Description |
| SMP-KK96 |
L=17.35, SMP female to female rf adapter |
| SMP-KK97 | L=19.6, SMP female to female rf adapter |
| SMP-KK98 | L=11, SMP female to female rf adapter |
Product Category:
1. RF Connectors Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF & DC) Connectors
5. Micro Rectangular Connector(J30J Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. ODM Products
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
