| Frequency Range: | DC~30GHz | Impedance: | 50Ω |
|---|---|---|---|
| Durability: | 500 Cycles | Material: | Stainless Steel |
| Application: | Audio/vedio/microwave | VSWR: | ≤1.3 |
| Insulation Resistance: | ≥2000MΩ | Insulating Medium: | PTFE |
| High Light: | MF108A Cable RF Plug,SSMA Male Stainless Steel RF Plug |
||

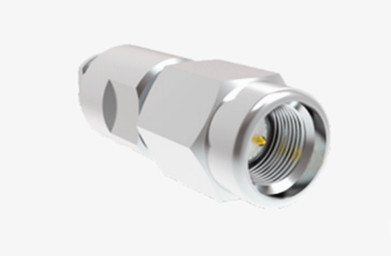

SSMA series RF coaxial connectors are miniaturized versions of SMA connectors, characterized by their compact size, broad frequency bandwidth, and high reliability. They are extensively used in various sectors such as aviation, aerospace, and microwave communications.
Features:
1. Miniaturized Size: SSMA connectors are smaller than their SMA counterparts, making them suitable for applications where space is at a premium.
2. Broad Frequency Bandwidth: SSMA connectors are designed to operate over a wide range of frequencies, typically supporting up to 18 GHz or even higher.
3. High Reliability: These connectors are engineered to maintain stable connections in demanding environments, including high temperatures and vibration.
4. Low Reflection Loss: The design of SSMA connectors helps to minimize signal reflections, reducing losses and providing improved performance.
Specifiacation of SSMA RF Connectors:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~30GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥2000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.5 -0.7N.m | |
Application:
1. Wireless Communication: In microwave links, point-to-point communication, and cellular base station antenna systems, SSMA connectors are used to connect RF (radio frequency) components.
2. Aerospace & Aeronautics: SSMA connectors are used in a variety of communication and navigation systems within the aerospace industry due to their high reliability and ability to withstand extreme conditions.
3. Test Equipment: In RF test and measurement equipment, SSMA connectors can be used to connect testing instruments with the equipment under test (EUT) or other RF components.
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |

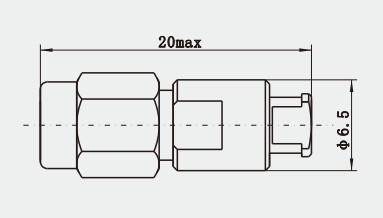

Interface Dimentions:
Related Product
1.Mini SMA Microstrip series 2 Holes Flange Connectors
2.SMA Female RF Connectors for cable RG178
2.Mini SMA PCB Panel Mount 4 Holes Flange Connectors
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
