| Product Name: | SMA RF Connector | Plating: | Nickel Plated |
|---|---|---|---|
| Durability: | 500 Cycles | Contact Material: | Brass, BeCu |
| Material: | Brass | Design Standard:: | IEC60169-15 |
| Type: | Straight | Gender: | Female |
| High Light: | Stainless Steel SMA RF Connector,Flange Mount SMA RF Connector |
||

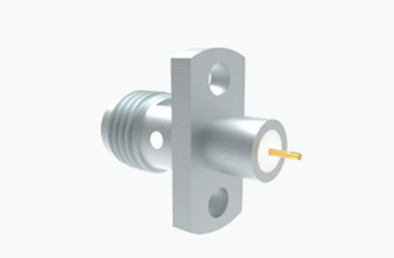

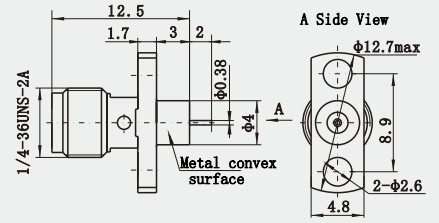

SMA Female Flange Mount Stainless Steel RF Connector
SMA series connector is a miniaturized, high-frequency coaxial RF connector that has been designed and manufactured in accordance with MIL-C-39012 standards. It boasts a compact size, wide bandwidth, and exceptional electrical performance. The SMA connector is one of the most frequently used coaxial RF connectors across various domains, including microwave communication and microwave measurement equipment. The high-performance SMA connectors developed by our company are capable of supporting frequencies up to 20GHz.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | |||
| Impedance | 50Ω | ||
| Frequency Range | Connect with solf cable DC~12.4GHz | ||
| Connect with semi-rigid cable DC~18GHz | |||
| Rated Voltage | 335VRMS | ||
| Dielectrics Voltage-resistance | 1000VRMS | ||
| Insulation Resistance | ≥5000MΩ | ||
| Center Resistance | Center Conductor | ≤3.0mΩ | |
| Outer Conductor | ≤2.0mΩ | ||
| VSWR | ≤1.3 | ||
| Material & Mechanical Characteristics | |||
| Center Conductor | Male | Brass Gold plated | |
| Female | Sn-P Bronze Gold plated | ||
| Elastic Contact | Beryllium bronze Nickel plated | ||
| Shell and other Metal Parts | Brass Nickel plated | ||
| Stainless Passivation | |||
| Crimping Sleeve | Brass Nickel plated | ||
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| Tightening torque of connection | 0.79－1.13N .m | ||
Product Detail:
Features:
1. Scientific Experimentation: In high-frequency electronic research and experiments conducted at universities and research institutions, SMA connectors are used for building and testing RF circuits.
2. Wireless Infrastructure: For connecting base station antennas, power amplifiers, filters, combiners, and other network equipment.
3. Aerospace: In the aerospace industry, SMA connectors are used for various avionics and spacecraft communication and data links.
Application:
1. Microwave Communication: In wireless communication systems such as point-to-point links, satellite communications, and mobile communication base stations, SMA connectors are used for signal transmission and distribution.
2. Test Equipment: SMA connectors are commonly found in network analyzers, spectrum analyzers, and other measurement instruments for connecting test cables and devices to ensure accurate signal measurements.
3. Navigation Systems: Including GPS and other navigation systems, where SMA connectors are typically used to link antennas to receivers.
4. Medical Devices: Certain medical imaging and diagnostic equipment, such as MRI and ultrasound devices, may use SMA connectors to connect components in the signal path.
