Product Details:
Payment & Shipping Terms:
|
| Product Name: | SSMB RF Conector | Plating: | Gold Plated |
|---|---|---|---|
| Durability: | 500 Cycles | Contact Material: | Brass, BeCu |
| Material: | Brass | Design Standard:: | IEC 1169-33 |
| Type: | Straight | Gender: | Female |
| High Light: | Straight Female RF Connector,Female Gold Plated RF Connector,SSMB RF Coaxial Adapter Connector |
||

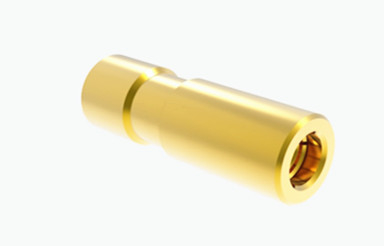

SSMB Female Glod Plated RF Connector for SFF-50-1 Cable
SSMB series products are miniature push-in and snap-in radio frequency coaxial connectors that have been developed and manufactured in compliance with IEC60169-19. These connectors possess features such as compact size, lightweight, and user-friendliness, making them suitable for use in micro radio equipment and instruments.
Specification
| Electrical Characteristics | ||
| Impedance | 50 Ohm | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥2000MOhm | |
| Contact Resistance | Outer conductor | ≤2mOhm |
| Center conductor | ≤6 mOhm | |
| VSMR | ≤1.25 | |
| Insertion Loss | ≤0.30dB | |

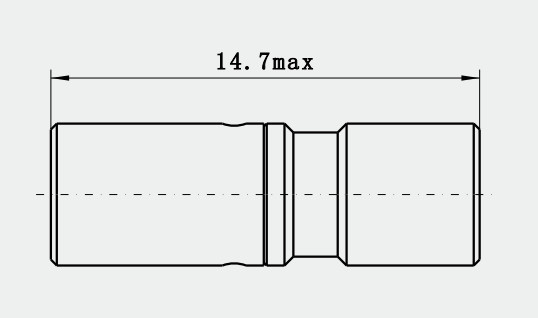

Product Detail
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Nickel Plated | |
| Shell / Housing | Brass,stainless steel | Nickel Plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.6N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -65 to +165Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
1.Miniature Size: The SSMB connectors are designed to be smaller than the standard SMB connectors, with an approximate outer threaded diameter of just 10 millimeters. This compact size is advantageous in space-restricted environments.
2.Lightweight: Due to their smaller dimensions, SSMB connectors are also lighter in weight, which is beneficial when a large number of connectors are used, as it reduces overall mass, facilitating portability and installation.
3.Easy to Connect: SSMB connectors are designed for push-in and snap-in functionality, meaning they can be easily attached to corresponding devices without the need for additional tools or excessive force.
Application:
Radio Equipment: In radio communication devices, SSMB connectors are commonly used to link antennas with transceivers, ensuring stable signal transmission.
Electronic Instrumentation: Within high-frequency electronic instruments, SSMB connectors are employed to connect measurement and testing equipment, maintaining precise data transfer.
Wireless Base Stations: In wireless communication base stations, SSMB connectors are used to interface E1 transmission cables with DDF small transmission boxes, representing a typical application within base station equipment.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
