| Product Name: | BMA RF Conector | Plating: | Nickel Plated |
|---|---|---|---|
| Durability: | 500 Cycles | Contact Material: | Brass, BeCu |
| Material: | Brass | Design Standard:: | IEC 60169-8 |
| Type: | Right Angle | Gender: | Female |
| High Light: | Axial Floating Mount RF Cable Connector,Semi Rigid Cable RF Connector,Female BMA RF Connector |
||

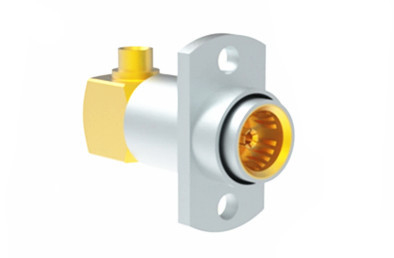

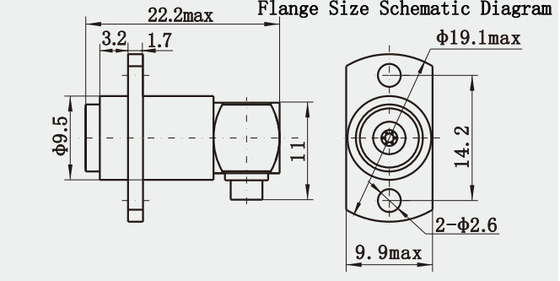

BMA Female Right Angle Axial Floating Mount RF Connector for 2#Semi-flexible/Semi-Rigid Cable
The BMA series connectors are a type of blind mate connector that adheres to the IEC1169-33 standard. They feature a novel spring sheet design, ensuring reliable contact and superior mechanical and electrical performance. These connectors offer the benefits of both axial and radial floating capabilities, minimal space occupation per connector, lightweight construction, and can be used for blind mate applications with chassis and cabinets. They are commonly employed in module connections for chassis and cabinet assembly.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ohm | |
| Frequency Range | DC~4GHz | |
| Rated Voltage | 500 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1500 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥5000MOhm | |
| Contact Resistance | Outer conductor | ≤2.0mOhm |
| Center conductor | ≤0.5mOhm | |
| VSMR | ≤1.3 | |
Product Detail:
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Nickel Plated | |
| Shell / Housing | Brass,stainless steel | Nickel Plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.58N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -45 to +155Deg C |
| IP Rating ( Mated ) | IP67 |
Features:
Compact Size: BMA connectors have a compact design, making them suitable for use in space-constrained environments. They are designed to fit into small spaces, making them ideal for use in portable devices and other applications where space is limited.
High Performance: Despite their small size, BMA connectors offer high-performance connectivity. They are designed to provide reliable signal transmission with minimal loss, ensuring optimal performance even in demanding applications.
Versatile Applications: BMA connectors are widely used in various industries due to their versatility. They can be found in applications such as automotive, aerospace, medical devices, consumer electronics, and more.
Easy Installation: BMA connectors are designed for easy installation and removal. Their simple design allows for quick connection and disconnection, reducing downtime and increasing productivity.
Durability: BMA connectors are built to withstand harsh environmental conditions and rugged handling. They are designed to maintain their performance over time, ensuring long-lasting connectivity.
Cost-Effective: BMA connectors are an economical solution for connecting various devices and components. Their compact size and high performance make them a cost-effective choice for manufacturers and consumers alike.
Application:
Electronics: BMA connectors are commonly used in the electronics industry for connecting audio and video devices, such as smartphones, tablets, laptops, and digital cameras. They are also used in the assembly of printed circuit boards (PCBs) and other electronic components.
Automotive: BMA connectors are used in the automotive industry for connecting various electronic devices in vehicles, such as infotainment systems, sensors, and control modules. Their compact size and high performance make them ideal for use in modern cars.
Industrial Automation: BMA connectors are used in industrial automation for connecting sensors, actuators, and other control devices. Their reliability and durability make them suitable for use in harsh industrial environments.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
