Product Details:
Payment & Shipping Terms:
|

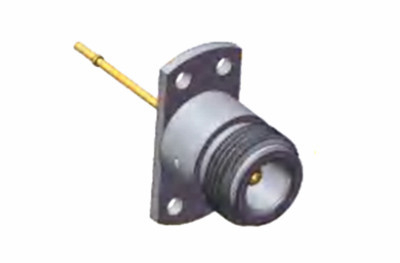

| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| VSWR: | ≤1.3 | Frequency Range: | DC~11GHz |
| Model: | N-KFD381 | Impedance: | 50Ω |
| High Light: | Long Pin Contact RF Coaxial Connector,N Series PCB Mount RF Connector,Female Flange RF Connector |
||
The N series connectors are developed and manufactured according to MIL-C-39012. They use threaded connections and
air as the medium, offering excellent electrical performance with a frequency of up to 11GHz. The precision connectors produced
by our company can reach up to 18GHz and can be compatible with various types of radio frequency cables. Due to their
excellent shock resistance, high reliability, wide frequency bandwidth, and other advantages, they are widely used in fields
such as aviation, aerospace, radar, microwave communication, digital communication, and microwave measurement.
Additionally, the N-type connector is a type of test interfaceconnector that is widely used in testing instruments.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |
Features
| Gold plated |
| Sub-miniature |
| DC to 40GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |

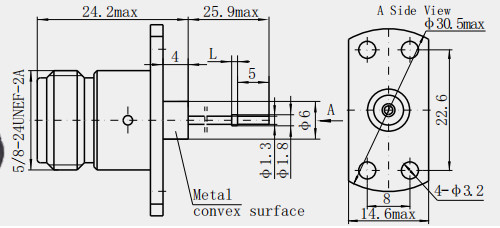

Detailed Drawing
Applications
* Computer/LANs
* Mobile communication
* Base Station
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Instrumentation
* Automotive
* Jump line join
* Basic facility
* Radio, TV aerial system
* Mobile communication
Product Cataloge
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
