Product Name: | BNC RF Conector | Plating: | Nickel Plated |
---|---|---|---|
Durability: | 500 Cycles | Contact Material: | Brass, BeCu |
Material: | Brass | Design Standard:: | IEC 60169-8 |
Type: | Straight | Gender: | Female |
High Light: | Female Bulkhead RF Connector,BNC Hermetically Sealed RF Connector,BeCu RF Coaxial Connector |

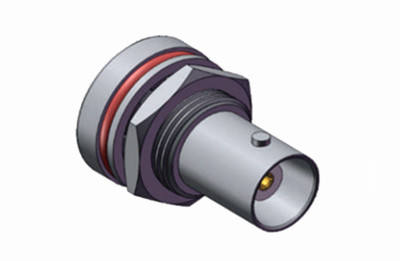

Experience Unmatched Connectivity with BNC Hermetically Sealed Female Bulkhead RF Connector
The BNC series connector is a type of bayonet-style RF coaxial connector that adheres to MIL-C-39012 specifications. It is known for its quick and reliable connection, making it ideal for use in radio frequency systems with frequencies below 4GHz. This connector is widely utilized in various industries, including network systems, instrumentation, and computer interconnection fields.
Specification
Electrical Characteristics | ||
Impedance | 50 Ohm | |
Frequency Range | DC~4GHz | |
Rated Voltage | 500 VRMS (Maximum sea-level) | |
Dielectrics Voltage-resistance | 1500 VRMS (Maximum sea-level) | |
Insulation Resistance | ≥5000MOhm | |
Contact Resistance | Outer conductor | ≤2.0mOhm |
Center conductor | ≤0.5mOhm | |
VSMR | ≤1.3 |

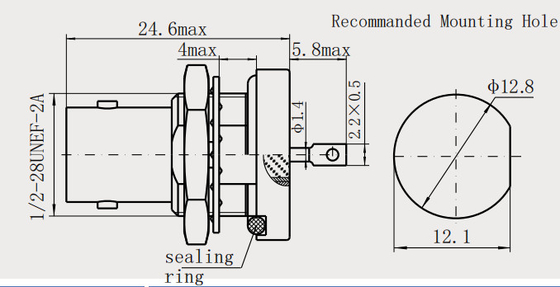

Product Drawing
Material & Mechanical Characteristics | |||
Center Conductor | Male/Plug | Brass | Gold plated |
Female/Socket | Sn-P bronze | Gold plated | |
Resilience Contact | Beryllium bronze | Nickel Plated | |
Shell / Housing | Brass,stainless steel | Nickel Plated | |
Insulators | PTFE | ||
Sealing Ring | Silicone Rubber | ||
Durability | 500 cycles |
RoHS Compliant | Yes |
Mating Cycles | 500Cycles |
Contact Retention | 10N min |
Cable Retention | 100N min |
Mating Force | 0.58N max |
Un-Coupling Force | 0.6 N max |
Environmental Specification:
Operating Temperature | -45 to +155Deg C |
IP Rating ( Mated ) | IP67 |
Features:
Application:
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
