| Product Name: | SMP RF Coaxial Conector | Certificate: | CE ROHS ISO-9001-2015 |
|---|---|---|---|
| Life Span: | 500 Cycles | Gender: | Male/Plug |
| Body Style: | Straight | Material: | Brass, Gold Plating |
| Mount Method: | Flange Mount | Imdepence: | 50Ohm |
| High Light: | Long Metal Convex RF Coaxial Connector,Male Gold Plating SMP RF Connector,SMP Flange Mount RF Connector |
||

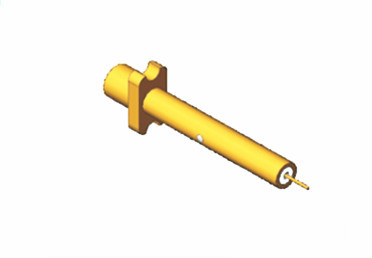

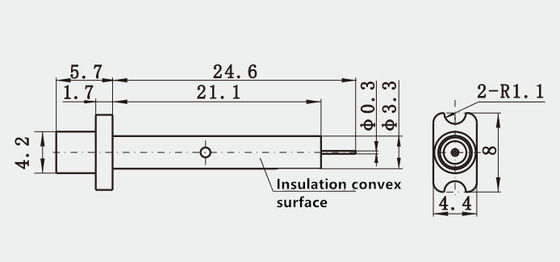

ROHS SMP Male Gold Plating Flange Mount RF Connector with Long Metal Convex Surface
The SMP interface is a small form-factor connector that measures the same as an MMCX connector, but it has a broader frequency range of DC to 40GHz. The SMP interconnect series employs floating female-to-female adapters (commonly known as bullets) for stacking boards with SMP male PCB connectors. This resilient structure and capacity to tolerate misalignment in both radial and axial directions enable blind interconnection solutions. It is commonly used in compact high-frequency coaxial modules.
The SMP connector is a compact, subminiature connector that measures the same as an MMCX connector. It has a frequency range of DC to 40GHz and is made from gold plated and passivated stainless steel. The connector can be coupled using either push-on or snap coupling methods. It is available in male and female versions, straight and right angle options, normal type and hermetic seals, flange mount and thread-in mount choices. Additionally, the plug offers three interface forms: full detent, limited detent, and smooth bore (including those with braking). Custom connectors are also available upon request.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
|
Center Resistance |
Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Antennas, board-to-board interconnect, telecommunications, and instrumentation are all related to the field of electronics.
