| Product Name: | SSMP Connector | Gender: | Female |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated/Nickel Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Rated Voltage: | 170VRMS* | Insulation Resistance: | ≥2000MΩ |
| High Light: | SMPM Female RF Connector,Mini SMP Female RF Connector,Semi Flex Cable SMPM RF Connector |
||
Type SSMP is a kind of miniature RF coaxial connectors with snap-on self-latching mechanism, They are developed for modular interconnection system with denser packing requirements.The characteristic of this type is easy to connect/disconnet, light weight, vibration-proof, high frequency and high performance.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
The male connector is available in Smooth Bore (SB) for easy connection and disconnection, Limited Detent (LD) providing a level of insertion and withdrawal force, and Full Detent (FD) requiring substantial insertion and withdrawal forces. In blind-mate applications, one shroud connector will be typically specified as a snap-on interface and the other as a slide-on. This ensures that the bullet adapter remains fixed in the same shroud connector when the connection is disengaged. The two snap-on interfaces Full Detent (FD) and Limited Detent (LD) each have different engage and disengage coupling forces. The LD is typically selected as the snap-on interface in PCB mount or blind-mate applications, while the FD is mainly used for cabled connections where higher retention forces are required.The two slide-on interfaces Smooth Bore (SB) and Catcher’s Mitt (CM) allow for reduced connection forces as compared to the snap-on versions. The push-on interface creates a sliding connection that does not physically locate the mating reference planes, allowing for axial and radial misalignment. Both the SB and CM have the same engage/disengage forces; however the CM is typically specified as the shroud configuration in blind-mate applications as its generous lead-in chamfer helps capture and guide the bullet into place.

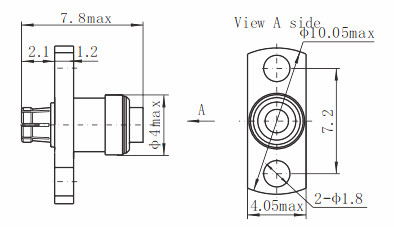

Detailed Drawing
Application:
* Network
* Satcom
* Computer/LANs
* Base Station
* Outdoor facilities
* Automotive
* Jump line join
* Basic facility
* Radar,microwave
* Telecommunications
* Mobile communication
* Instrumentation
* Radio, TV aerial system
Product Cataloge:
| RF Adapter |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
