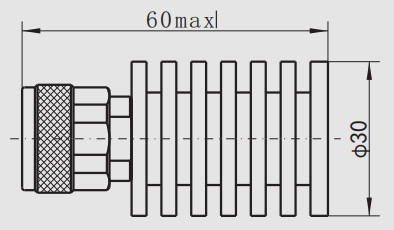

| Impedence: | 50Ohm | Length: | 60mm Max |
|---|---|---|---|
| Diameter: | φ30 | Frequency Range: | DC-18GHz |
| Housing: | Brass | Note: | Cylindrical Resistor |
| High Light: | RF Termination Load 10W,Fixed Matched RF Termination Load,N-Male RF Terminator |
||
N-male 10W RF Fixed Matched Load/Termination Load 50Ω
Matched load is a single port microwave element connected to the terminal of the transmission system. It can absorb all the power of the reflected wave almost without reflection. According to its power capacity, it can be divided into low power and high power. Our main RF Load is low power.
The coaxial load is a terminator that absorbs all incident wave power. Therefore, it is equivalent to the characteristic impedance line connected to the terminal. The common matching loads are waveguide matching load and three board line matching load. Compared with the partial energy absorbed by the attenuator, the matching load absorbs all the energy, and the frequency band is wide enough. The resistance value of coaxial matching load is usually 50Ω.
| Model No. | N-JR-10W |
| Power | 10W |
| Frequency Range | DC-18GHz |
| VSWR | ≤1.4 |
| Note | Cylindrical Resistor |
Details of N-male 10W RF Fixed Matched Load/Termination Load 50Ω
Advantage :
* High Reliable
* Reliable Mechanical Performance
* Wide Frequency Range from DC to 18GHz
Applications :
◆ Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Widely used for In-building Solutions
Since the matched load needs to be customized according to your needs, please provide the following requirements when you send us inquiry:
*The frequency range you need.
*Power requirement.
*Connector type
*Your special requirements if you have (VSWR, temperature, size, etc.)
