Hertemic: | Water Proof | Gender: | Female |
---|---|---|---|
Impedance: | 50Ω | Frequency: | DC~18GHz |
Durability: | 500 Cycles | Insulation Resistance: | ≥5000MΩ |
VSWR: | ≤1.3 | Insulating Medium: | PTFE |

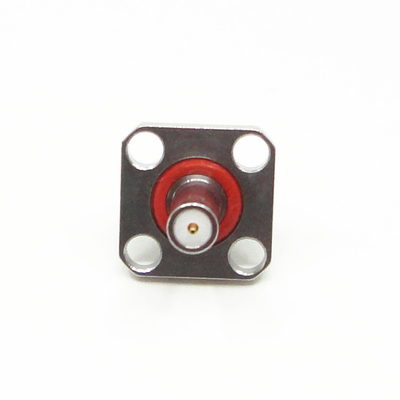

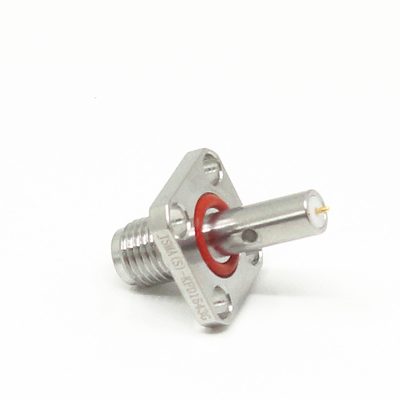

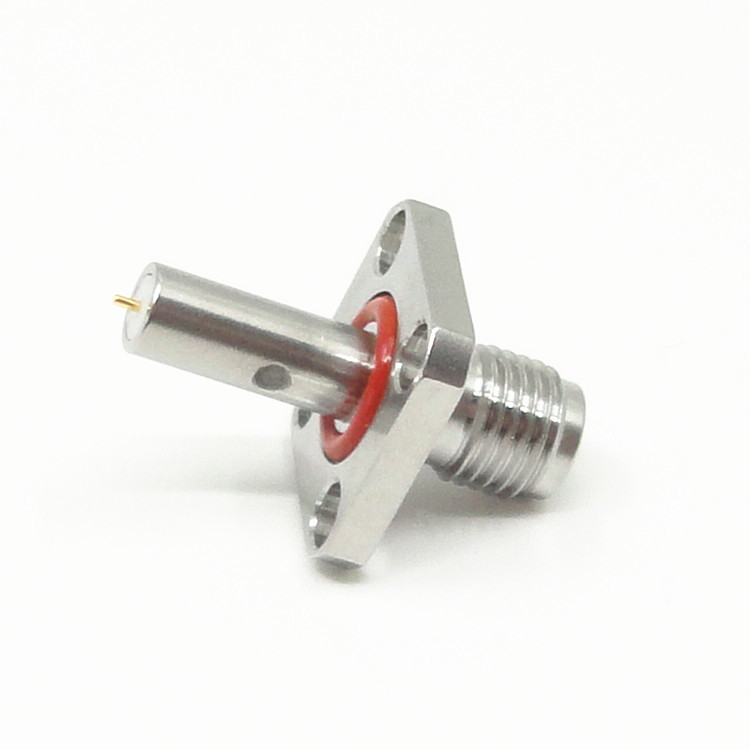

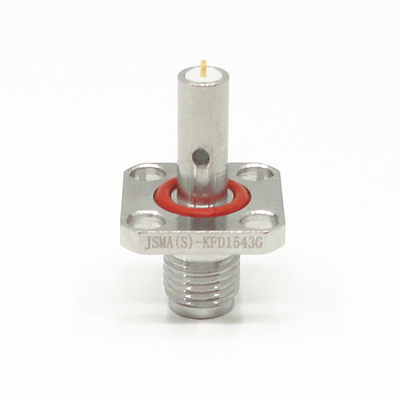

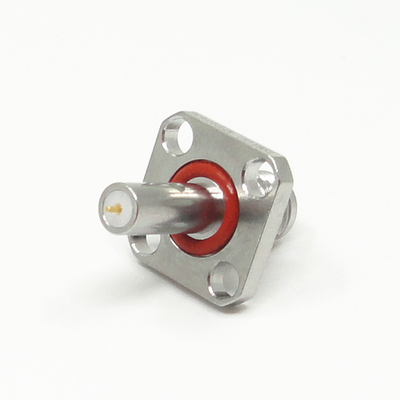

High Light: | 4 Hole SMA RF Connector,Hermetically Sealed SMA RF Connector,4 Hole sma flange mount connector |
The specifications below are general specifications for all sma connectors. Specific specifications for VSWR, insertion loss, and RF leakage for each connector is available from our factory upon request.
SMA series is a kind of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume, good bandwidth, superior electrical characteristics.
SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.
Electronic and Material Characterials:
Electronic and Material Characterials | ||
Impedance | 50Ω | |
Frequency Range | DC~18GHz | |
Rated Voltage | 335 VRMS (Maximum sea-level) | |
Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) | |
VSWR | ≤1.3 | |
Insulation Resistance | ≥5000MΩ | |
Center conductor | Male | Brass gold plated |
Female | Beryllium copper gold plated | |
Shell and other metal parts | Brass gold plated | |
Stainless steel passivated | ||
Cable sheath | Brass nickle plated | |
Insulator | PTFE | |
Seal ring | Silicon rubber | |
Mating torque | 0.79 -1.13 N.m |
Products Details:
Application:
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Board-to-board interconnect
Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. RF Loads, Terminations (TNC,SMA, SSMA, SMP, SSMP, N, K2.92mm)
9. ODM Products
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
