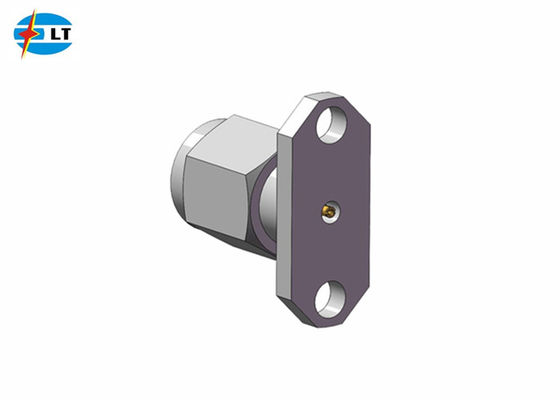

2.4mm 50Ohm Male Straight Connector 2 Holes Flange Screw on Connector

2.4mm 50Ohm Male Straight Connector 2 Holes Flange Screw on Connector
2.4mm 50Ohm Male Straight Connector 2 Holes Flange Screw on Connector 2.4mm 50Ohm Male Straight Connector 2 Holes Flange Screw on Connector

Large Image :  2.4mm 50Ohm Male Straight Connector 2 Holes Flange Screw on Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: 2.4-JFD4G
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35000pcs/year
Detailed Product Description
Product Name: 2.4mm RF Coaxial Conector Impedance: 50Ω
Certificate: CE ROHS Lifetime: 500Cycles
Application: Computer/LANs Material: Stainless Steel
Plating: Passivated Gender: Male
High Light:

2.4mm 50ohm Male Straight Connector

,

2.4mm 2 Holes Male Straight Connector

,

2.4mm 50ohm Screw On Connector

2.4mm Male Straight Connector 2 Holes Flange Screw-On Connector


2.4 Type product is a high performance millimeter wave connector, the frequency is 50GHz, use air interface threaded connect with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.

The high precision 50Ohm coaxial 2.4mm connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.



Specification

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~50GHz
Rated Voltage
170VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
500VRMS (Maximum sea-level)
Insulation Resistance
≥5000MΩ


Contact Resistance

Outer conductor
≤2mΩ
Center conductor
≤3mΩ
VSMR
≤1.05+0.005f

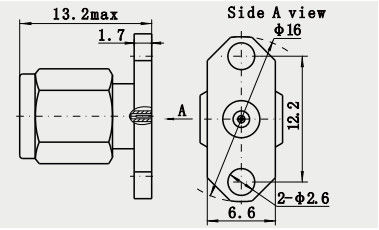

Detailed Drawing:
2.4mm 50Ohm Male Straight Connector 2 Holes Flange Screw on Connector 0

Model No.Description
2.4-JFD4G2.4mm Male Straight RF Connector


Features:

• Great for applications that require high frequency transmission
• Connector mating interface per MIL-STD-348
• Superior electrical performance up to 50GHz
• Excellent reliability where extreme shock & vibration conditions are experienced
• Quick connect cable plugs and adapter
• The 2.4mm connector is a precision microwave connectors.
• Stainless steel construction
• Superior electrical performance to 50GHz
• Connectors in End Launch and Flange options
• Adapters to 2.4mm, SMP, 2.92mm, SMA.

Advantages:



 Normal productsElite products
Frequency RangeDC~40GHzDC~65GHz
VSWR≤1.35≤1.3
Durability300 Cycles>500 Cycles


Application:

* Automotive
* Computer/LANs
* Telecommunications
* Research centres
* Satellite communications
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation

Our Main Products

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints


NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your detai
ls.
