50Ω Impedance Female To Female SSMP RF Adapter Gold Plated

50Ω Impedance Female To Female SSMP RF Adapter Gold Plated
50Ω Impedance Female To Female SSMP RF Adapter Gold Plated 50Ω Impedance Female To Female SSMP RF Adapter Gold Plated 50Ω Impedance Female To Female SSMP RF Adapter Gold Plated 50Ω Impedance Female To Female SSMP RF Adapter Gold Plated

Large Image :  50Ω Impedance Female To Female SSMP RF Adapter Gold Plated Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SSMP-KK54
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: within 3 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Product Name: SSMP, SMPM, Mini SMP Connector Gender: Female/Jack
Material: Brass Plating: Gold Plated
Impedance: 50Ω Frequency Range: DC~50GHz
Other Names: Mini SMP, SMPM Body Style: Straight
Model: SSMP-KK54
High Light:

Female To Female SSMP RF Adapter

,

50 ohm SSMP RF Adapter

,

50ohm Female To Female Adapter

50Ω Impedance Gold Plated Female To Female SSMP RF Adapter

Introduction



SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole. The SMPM for the install situation with the requirement of high reliability modular intensive.Typical applications include third generation telecommunication systems


Specification:

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤3.5mΩ, Sealing≤5mΩ
Center conductor Normal≤8mΩ, Sealing≤30mΩ
  DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5



Material & Mechanical Characteristics:



Center Conductor:

Male: Sn-P Bronze/Kovar, Gold plated

Female: Beryllium bronze, Gold plated


Elastic Contact:Beryllium bronze Gold plated

Body and other Metal Parts: Brass/Kovar Gold plated





Product Drawing:

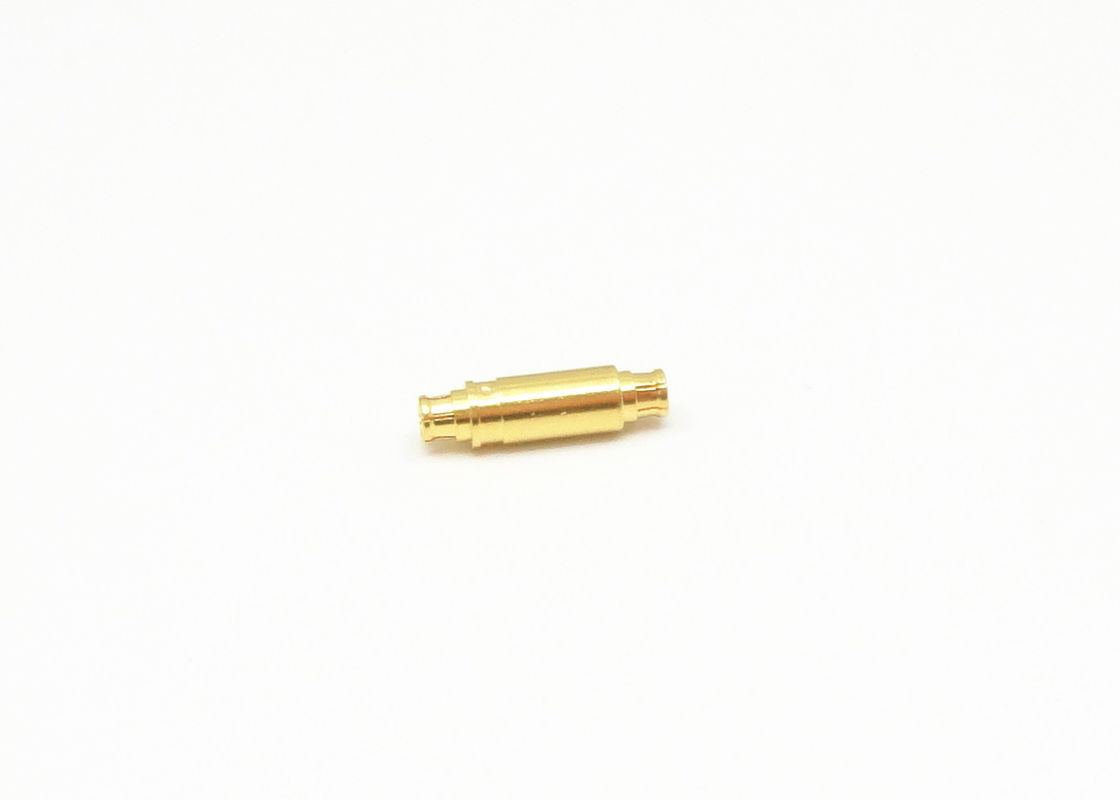

50Ω Impedance Female To Female SSMP RF Adapter Gold Plated 0







Features:



- Higher frequency range to 50GHz



- SMPM (SSMP) is a sub-miniature, push-on style micro-interfaces connectors can be widely used in telecom.



- SMPM series includes PC-mount, straight and right-angled, .047 cabled connectors, and sealable flange-mounts.



- All male connectors are offered as full-detent or smooth bore designs for your preference of separation forces.





Gold offers the following main advantages:



-- Excellent wettability/solderability



-- Excellent protection against corrosion



-- Low contact resistance



-- Good wear resistance





Application:



*Board-to-board interconnect



*Aerospace



*Broadband



*Instrumentation



*Phased array antennas



*Telecommunications





Certificate:

50Ω Impedance Female To Female SSMP RF Adapter Gold Plated 1







Factory& Production Line:

50Ω Impedance Female To Female SSMP RF Adapter Gold Plated 2



NOTE:

We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
