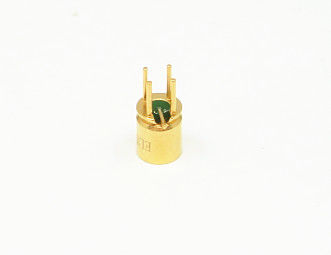

Surface Mount SMP Male Coaxial Straight Connector Hermetically Sealed

Surface Mount SMP Male Coaxial Straight Connector Hermetically Sealed
Surface Mount SMP Male Coaxial Straight Connector Hermetically Sealed Surface Mount SMP Male Coaxial Straight Connector Hermetically Sealed Surface Mount SMP Male Coaxial Straight Connector Hermetically Sealed Surface Mount SMP Male Coaxial Straight Connector Hermetically Sealed Surface Mount SMP Male Coaxial Straight Connector Hermetically Sealed Surface Mount SMP Male Coaxial Straight Connector Hermetically Sealed

Large Image :  Surface Mount SMP Male Coaxial Straight Connector Hermetically Sealed Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SMP(M)-JHD487-WP
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Product Name: SMP Connector Rated Voltage: 170VRMS*
Material: Brass Plating: Gold Plated
Impedance: 50Ω Frequency Range: DC~50GHz
Gender: Male Lifespan: 500Cycles
High Light:

Solder Mount SMP Male Coaxial Connector

,

Hermetically Sealed SMP Male Coaxial Connector

,

Solder Mount smp male connector

Surface Mount SMP Male Coaxial Straight Connector Hermetically Sealed

The SMP interface enables design engineers to increase design performance and complexity while also improving form factor.
The SMP interconnect series relies on a floating female-to-female adapter (commonly referred to as a bullet) to enable SMP male and PCB connector-equipped boards to be stacked. This durable construction gives this product line the ability to:


* Tolerate radial and axial misalignment
* Withstand multiple engagement/disengagement cycles without degradation in electrical performance

Surface Mount SMP Male Coaxial Straight Connector Hermetically Sealed 0
Features:

- DC to 40 GHz
- Sub-miniature

- Gold plated
- Compact size
- Push-on or snap coupling
- PCB & cable mount connectors

- Full detent, Limited detent and Smooth bore

- Male& Female, Straight & Right Angle choice
- Normal type and hermetic, Flange mount & Thread-In Mount choice

- Cable mount versions for both flexible and semi-rigid cable Materials



Specification

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Sealing≤4mΩ
Center conductor Sealing≤26mΩ
  DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze/Kovar, Gold plated
Female Beryllium bronze, Gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts

Brass/Kovar Gold plated

Stainless steel Passivation

Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate ≤1.01325×10-3Pa·cm3/s





Application:



* Satcom

* Network

* Computer/LANs

* Base Station

* Outdoor facilities

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radar,microwave

* Telecommunications

* Mobile communication

* Radio, TV aerial system



Product Cataloge:



RF Adapter
Waveguide To Coaxial Adapter
TNC RF Connector
N Type RF Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
J30J Series Connector
Glass-to-metal Hermetic Seals
BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)



Packaging Details:


* Standard Export Carton
* According to customers' requirements



NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your detai
