3.5mm to 2.4mm Type Male to Male MMW Millimeter Wave Adapter Connectors

3.5mm to 2.4mm Type Male to Male MMW Millimeter Wave Adapter Connectors

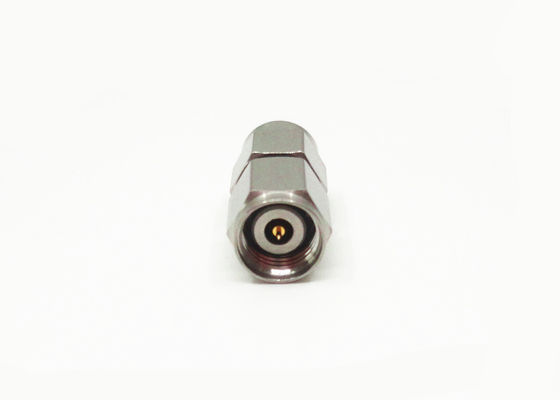

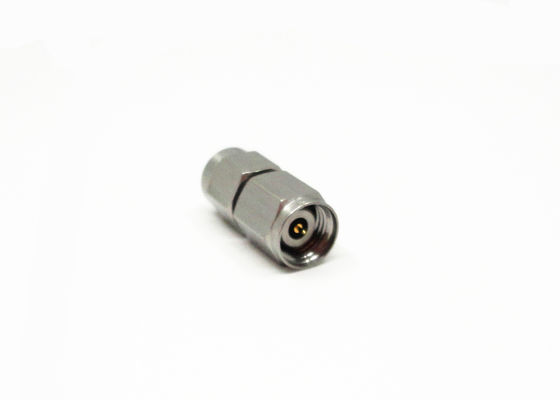

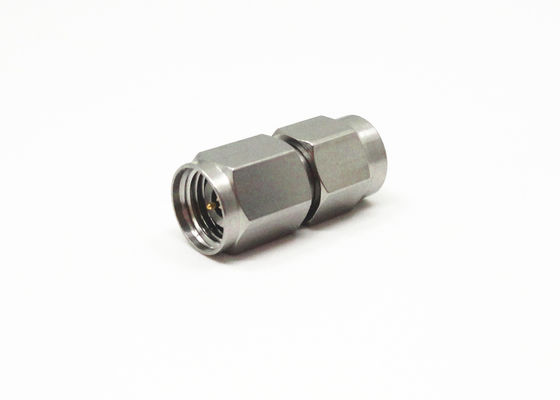

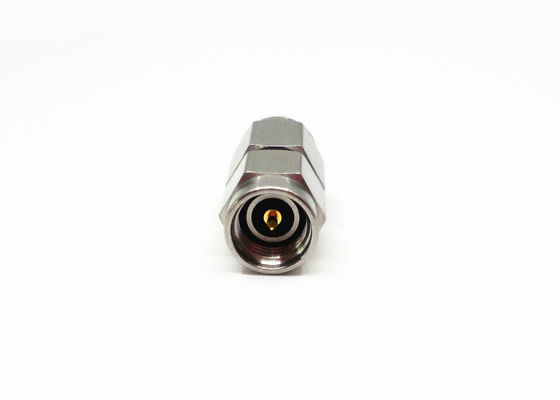

3.5mm to 2.4mm Type Male to Male MMW Millimeter Wave Adapter Connectors 3.5mm to 2.4mm Type Male to Male MMW Millimeter Wave Adapter Connectors 3.5mm to 2.4mm Type Male to Male MMW Millimeter Wave Adapter Connectors 3.5mm to 2.4mm Type Male to Male MMW Millimeter Wave Adapter Connectors

Large Image :  3.5mm to 2.4mm Type Male to Male MMW Millimeter Wave Adapter Connectors Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: CE,ROHS
Model Number: 3.5-2.4-JJG
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35000pcs/year
Detailed Product Description
Material: Stainless Steel Gender: Male To Male
Product Name: Between-Series Adaptor Keywords: MMW Adaptor Adapter
Item: 3.5mm To 2.4mm RF Adapter Application: RF
Surface Plating: Passivated Connector Type: Straight RF Connectors
Lifetime: 500Cycles
High Light:

MMW Millimeter Wave Adapter

,

3.5mm Millimeter Wave Adapter

,

2.4mm Millimeter Wave Adapter

3.5mm to 2.4mm Type Male to Male (MMW)Millimeter Wave Adaptor Connectors



3.5 series is a common used millimeter wave connector, the frequency is 33GHz (up to 36GHz), use air interface, can mate and interchange with SMA series, K series connectors, With advantages of great bandwidth, high reliability,it is widely used in microwave measurement and millimeter wave devices.


2.4 Type product is a high performance millimeter wave connector, the frequency is 50GHz, use air interface threaded connect,with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.



The high precision 50Ohm coaxial 3.5mm to 2.4mm adaptor for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.


Specification:


Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~50GHz
Rated Voltage
250VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
750VRMS (Maximum sea-level)
Insulation Resistance
≥5000MΩ

Contact Resistance
Outer conductor
≤2mΩ
Center conductor
≤3mΩ
VSMR
≤1.3


More Pictures:

3.5mm to 2.4mm Type Male to Male MMW Millimeter Wave Adapter Connectors 03.5mm to 2.4mm Type Male to Male MMW Millimeter Wave Adapter Connectors 1



Application:


* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Automotive
* Satcom
* Computer/LANs
* Research centres
* Satellite communications



Packaging & Delivery:


* Standard Export Carton
* According to customers' requirements



NOTE:
We have over 10,000 types of MMW Adapter, if the connector you are using is not found, please contact us with your details.
