Stainless Steel Housing Straight 2.92mm RF Connector for Radar

Stainless Steel Housing Straight 2.92mm RF Connector for Radar
Stainless Steel Housing Straight 2.92mm RF Connector for Radar Stainless Steel Housing Straight 2.92mm RF Connector for Radar Stainless Steel Housing Straight 2.92mm RF Connector for Radar Stainless Steel Housing Straight 2.92mm RF Connector for Radar

Large Image :  Stainless Steel Housing Straight 2.92mm RF Connector for Radar Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: CE,ROHS
Model Number: K-KFD140G
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35000pcs/year
Detailed Product Description
Insulator: PTFE Gender: Female
Product Name: 2.92mm,K Type,SMK Key Features: 2 Holes Flange Panel Connectors
Item: Millimeter Wave Connectors Plating: Passivated
Application: Computer/LANs Material: Stainless Steel
High Light:

Stainless Steel 2.92mm RF Connector

,

Radar 2.92mm RF Connector

,

Stainless Steel 2.92 mm rf connector

                         Stainless Steel Housing 2.92 MM Straight Connector for Radar



K type is also called 2.92 type connector, this serie of products is a commonly used millimeter wave connectors, with a frequency of up to 40 GHz, can be used with SMA series and 3.5 series products are interchangeable and adopt air interface with small size, light weight, high frequency of use, reliable connection, etc.



Stainless Steel Housing Straight 2.92mm RF Connector for Radar 0

Features of Stainless Steel Housing 2.92 MM Straight Connector for Radar(mm):

  1. An air dielectric with a loss-loss plastic center conductor support.
  2. It can mate and interchange with SMA series, K series, 2.4mm, 3.5mm connectors.
  3. Superior electrical performance up to 40GHz
  4. It have the advantages of small volume, light weight, high use frequency, reliable connect.
  5. Great for applications that require high frequency transmission
  6. Connector mating interface per MIL-STD-348
  7. Female contacts have unique three-slot construction
  8. It has the high use frequency, reliable connect.

Application of Stainless Steel Housing 2.92 MM Straight Connector for Radar(mm):

Network Satcom
Computer/LANs Computer/LANs
Mobile communication Instrumentation
Base Station Mobile communication
Outdoor facilities Radar,microwave
Telecommunications Instrumentation
Automotive Jump line join
Basic facility Radio, TV aerial system



Specification of Stainless Steel Housing 2.92mm Straight Connector for Radar(mm):

Impedance 50 Ω
Frequency Range DC - 40GHz
Voltage Rating 250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage 750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio
VSWR
≤ 1.05 + 0.005f
Contact Resistance Center Conductor ≤ 3.0 mΩ
  Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000 MΩ
Inner Conductor Male plug: Brass, Gold Plated
  Female Jack: BeCu, Gold Plated
Resilient Contact BeCu, Nickel Plated
Body / Shell / Housing Brass, Gold Plated
Stainless Steel, Passivated
Insulator PEI
Gasket Silicone Rubber
Temperature -55℃ ~ +125℃
Durability 500 Cycles
Torque 0.79 ~ 1.13 N.m



Other 2.92mm Male Female RF Connector:

Part Number
Description
K-KFD3
2.92mm Type K Female RF Coaxial Connector
K-KFD42
Stainless steel 2.92mm Type K Female RF Coaxial Connector
K-KFD62G
2.92mm Type K Female RF Coaxial Connector

K-JFD9G

Stainless steel 2.92mm Type K Male RF Coaxial Connector



1.

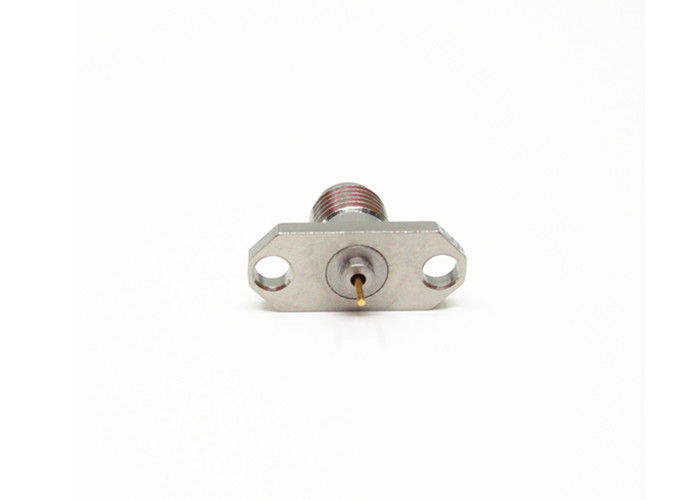

Stainless Steel Housing Straight 2.92mm RF Connector for Radar 1

2.

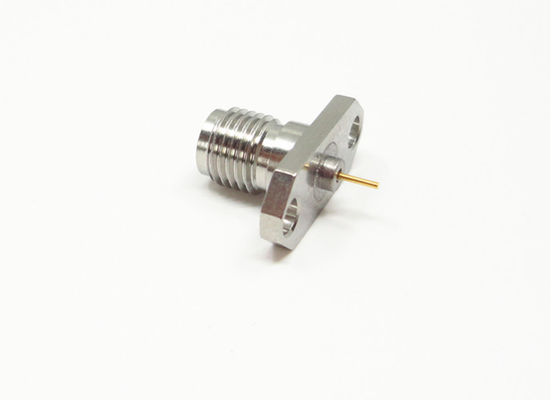

Stainless Steel Housing Straight 2.92mm RF Connector for Radar 2



3.

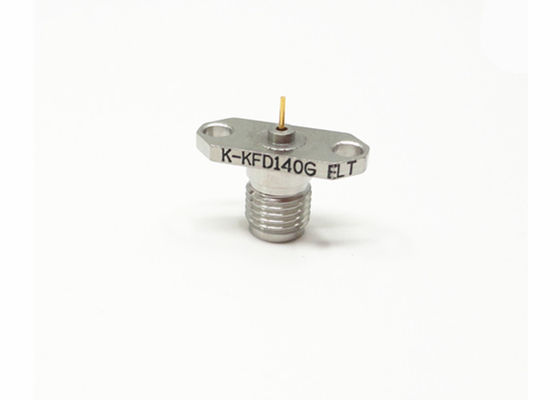

Stainless Steel Housing Straight 2.92mm RF Connector for Radar 3



4.

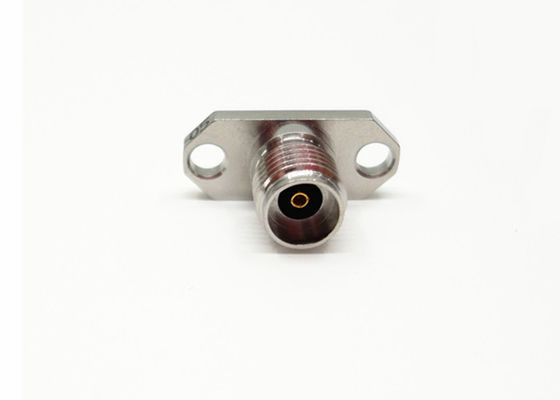

Stainless Steel Housing Straight 2.92mm RF Connector for Radar 4

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your detai
ls.



Stainless Steel Housing Straight 2.92mm RF Connector for Radar 5
