Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP RF Coaxial Conector | Frequency Range: | DC~40GHz |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Gender: | Jack | Life Span: | 500Cycles |
| Body Style: | Straight | Material: | Brass |
| Mount Method: | Flange Mount | ||
| High Light: | 360 Degree SMP RF Connector,CXN3506 Cable SMP RF Connector,360 Degree angled coax connector |
||

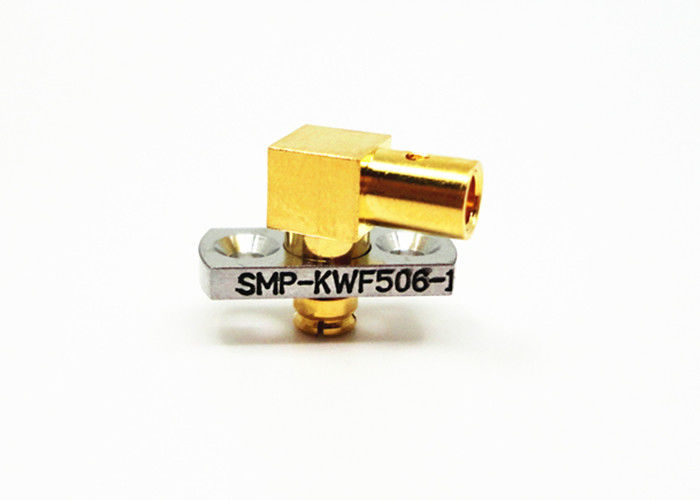

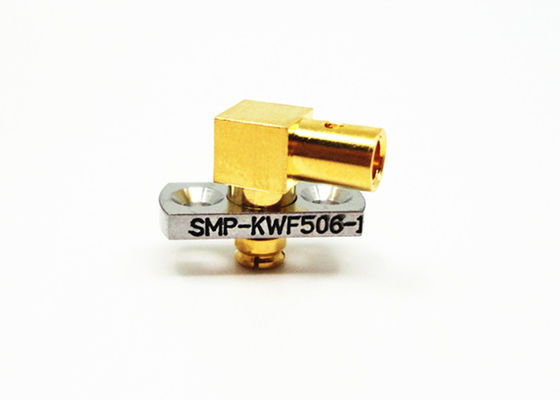

360 degree Free Rotate Flange Mount SMP Connector for CXN3506 Cable
SMP is a sminiature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance, and widely working broadband,etc. Its operating frequency up to 30GHz (our product of SMP connector can reach 40GHz) and the plug has three interface form-full detent, limited detent and smooth bore(including with braking).
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/ | |
| Model Number | L(mm) | D(mm) | Cable Type | Note |
| SMP-KWF506-11 | 8.3 | 13.2 | CXN3506 | Flange with 360° Free Rotate |
| SMP-KWF506-13 | 13.2 | 17.2 | CXN3506 | Flange with 360° Free Rotate |
Features and Benefits:
- DC to 40GHz
- Sub-miniature
- Push-on or snap coupling
- Compact size
- Cable mount versions for both flexible and semi-rigid cable Materials
- PCB & cable mount connectors
- Gold plated
- Normal type and hermetic, Flange mount & Thread-In Mount choice
- Male& Female, Straight & Right Angle choice
- Full detent, Limited detent and Smooth bore
Applications:
Product Cataloge:
| RF Adapter |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
