| Product Name: | SMP RF Coaxial Conector | Plating: | Gold Plated |
|---|---|---|---|
| Impedance: | 50Ω | Durability: | 500 Cycles |
| Gender: | Male | Body Style: | Straight |
| High Light: | Microminiature Push On Coaxial Connectors,SMP Male Push On Coaxial Connectors,SMP Male push on coaxial cable |
||

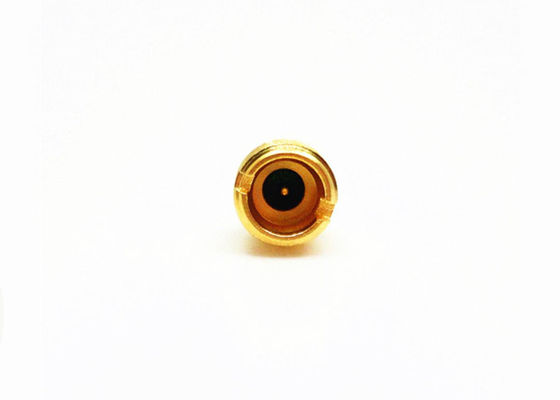

Bulkhead SMP Microminiature Push-On Coaxial Connectors SMP Male
SMP is a miniature push-on RF coaxial connector,which has the characters of small volume,light weight,excellent seismic performance and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz) and the plug has three interface form with full detent, limited detent and unthreaded hole(including with braking).Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connectors. Apply for the install situation with the requirement of high reliability modular intensive.
Detailed Drawing of 50Ohm SMP Male Straight RF Coaxial Connector:
| Model Number | Description | Note |
| SMP-JYD83 | SMP male Limited detent bulk head Pin Terminal | Interface depth 2.79mm |
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
| DC to 40GHz |
| Sub-miniature |
| Gold plated |
| Compact size |
| Male & Female, Straight & Right Angle choice |
| Push-on or snap coupling |
| PCB & cable mount connectors |
| Full detent, Limited detent and Smooth bore |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
- Antennas
- Aerospace
- Instrumentation
- Broadband
- Board-to-board interconnect
- Phased array antennas
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
