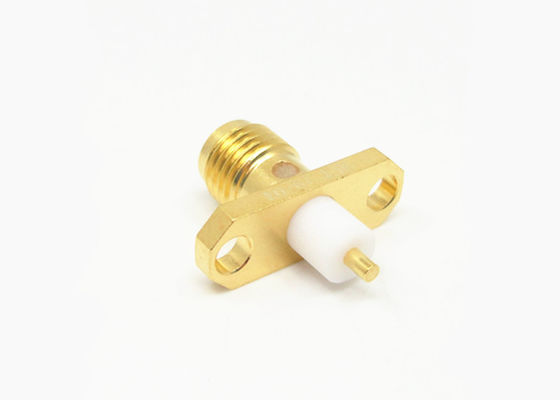

Jack Female 2 Holes Flange Mount RoHS SMA RF Connector

Jack Female 2 Holes Flange Mount RoHS SMA RF Connector
Jack Female 2 Holes Flange Mount RoHS SMA RF Connector Jack Female 2 Holes Flange Mount RoHS SMA RF Connector Jack Female 2 Holes Flange Mount RoHS SMA RF Connector Jack Female 2 Holes Flange Mount RoHS SMA RF Connector

Large Image :  Jack Female 2 Holes Flange Mount RoHS SMA RF Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SMA-KFD5A
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1,000,000 Pieces Per Month
Detailed Product Description
Product Name: SMA RF Coaxial Conector Plating: Gold Plated
Impedance: 50Ω Frequency: DC~18GHz
Durability: 500 Cycles Application: RF, Satcom /antenna/Audio
Material: Brass Certificate: ROHS, ISO-9001-2015
Vswr: ≤1.3
High Light:

RoHS SMA RF Connector

,

Jack Female SMA RF Connector

,

RoHS sma jack female

Jack Female 2 Holes Flange Mount SMA RF Coaxial Connectors



High Performance SMA RF Connectors:

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 holes  panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).



Key Features of SMA RF Connectors:

Frequency range up to 18GHz Sub-miniature coaxial connectors
Using a threaded interface
Available in passivation or gold plating
Brass and stainless steel material options
Wide variety of orientations and PCB terminations
Available in straight or right angle versions
With bulkhead 2 holes panel, 4 holes panel or mountless options.
Broad range with male, female and adapters variants.
RoHS compliant



 JSMA-KFD5A  4.jpgJSMA-KFD5A 1.jpg





Specifiacation:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 18GHz
Insertion Loss ≤0.30dB
VSWR ≤1.2(DC-6GHz)
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE



More Detail of Jack Female 2 Holes Flange Mount SMA RF Coaxial Connectors:




Applications:

  1. Microwave Systems Telecommunications
  2. 5G Solutions
  3. Measurement Systems
  4. Mobile Telephone WiFi Antennas Systems



Interface Dimentions:




NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
