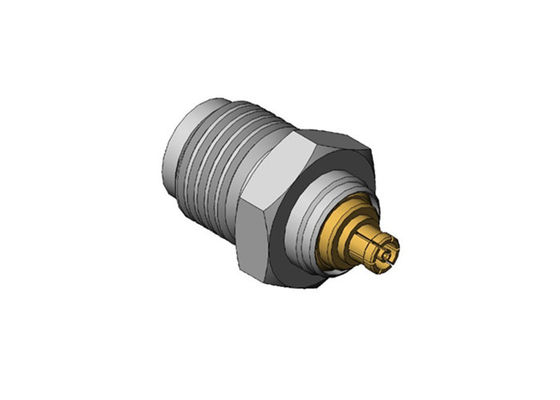

Female to Mini SMP Female 2.4mm Brass Gold Plated Adapter

Female to Mini SMP Female 2.4mm Brass Gold Plated Adapter
Female to Mini SMP Female 2.4mm Brass Gold Plated Adapter Female to Mini SMP Female 2.4mm Brass Gold Plated Adapter

Large Image :  Female to Mini SMP Female 2.4mm Brass Gold Plated Adapter Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS ISO-9001-2015
Model Number: 2.4/SSMP-KK1
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: within 3 weeks
Payment Terms: T/T, L/C
Supply Ability: 1,000,000pcs per week
Detailed Product Description
Product Name: 2.4mm Female To SSMP Female Adapter Impedance: 50Ω
Dielectric: PTFE Type: RF Adaptor
Gender: Female To Female Material: Brass
Color: Gold Plated Durability: 500 Cycles
Body Style: Straight
High Light:

2.4mm Brass Gold Plated Adapter

,

Female to Mini SMP Female Adapter

,

2.4mm RF Adapter

2.4mm Female to Mini SMP Female Brass Gold Plated Adapter



2.4 Type product is a high performance millimeter wave connector, the frequency is 50GHz, use air interface threaded connect,with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.



Mini SMP connector is also called SMPM, SSMP connector. It's a miniature push-on RF coaxial connector, which have the characters of small volume (compared with SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors, for the situation of modular intensive mounting, and the plug has two interface form with full detent and smooth bore.



Outline Drawing and Picture(mm)

Female to Mini SMP Female 2.4mm Brass Gold Plated Adapter 0

Model No. Note
2.4/SSMP-KK1 Stainless Steel



Related Products

1.

Female to Mini SMP Female 2.4mm Brass Gold Plated Adapter 1

Mode No. Description
SMA/MCX-KJ SMA Female to MCX Male



2.

Female to Mini SMP Female 2.4mm Brass Gold Plated Adapter 2

Model No. Description
K/SMP-KFK5 K female to SMP female adapter



3.

Female to Mini SMP Female 2.4mm Brass Gold Plated Adapter 3

Model No. Description
SMA/IX-KJ SMA Female to IX male adapter



4.

Female to Mini SMP Female 2.4mm Brass Gold Plated Adapter 4

Model No. Description
K/SMP-KFK2G stainless steel



5.

Female to Mini SMP Female 2.4mm Brass Gold Plated Adapter 5

Model No. Note
SMA/SMP-KYK15 Axial float 1.0mm max,can be compressed to 20.7mm



Application:

Network Satcom
Computer/LANs Computer/LANs
Mobile communication Instrumentation
Base Station Mobile communication
Outdoor facilities Radar,microwave
Telecommunications Instrumentation
Automotive Jump line join
Basic facility Radio, TV aerial system



Workshop & Exibition

Female to Mini SMP Female 2.4mm Brass Gold Plated Adapter 6

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your detai
ls.
