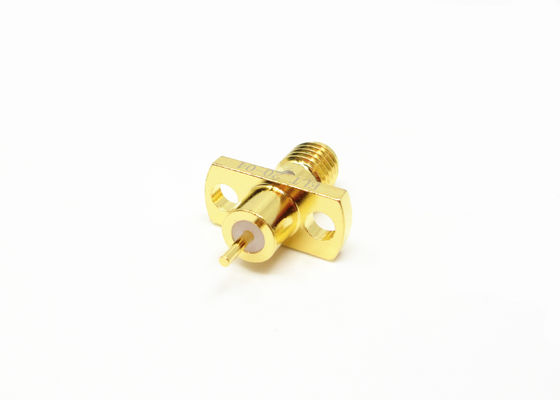

18GHz Female 50Ω Microstrip Mini SMA RF Connector

I'm Online Chat Now
Certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
Product was exactly as expected and of high quality. Service was excellent. Will definitely order from again.

—— Gregory,USA

Understood my requirements and sought the right parts.

—— Ian, New Zealand

It has been a great pleasure dealing with you and thank you for your help and suggestion. Hope that there will be more copperation in the near future.

—— Terence, Singapore

The SMP connectors are high quality, the leak rate can reach 1*10^-9 mbar*l/s. A great deal with such an economic price.

—— Jonh,United States

Professional Seller

—— Abdu,Saudi Arabia

18GHz Female 50Ω Microstrip Mini SMA RF Connector

18GHz Female 50Ω Microstrip Mini SMA RF Connector
18GHz Female 50Ω Microstrip Mini SMA RF Connector 18GHz Female 50Ω Microstrip Mini SMA RF Connector 18GHz Female 50Ω Microstrip Mini SMA RF Connector 18GHz Female 50Ω Microstrip Mini SMA RF Connector 18GHz Female 50Ω Microstrip Mini SMA RF Connector 18GHz Female 50Ω Microstrip Mini SMA RF Connector

Large Image :  18GHz Female 50Ω Microstrip Mini SMA RF Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS, ISO-9001-2015
Model Number: SSMA-KFD133
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3-4 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1,000,00 Pieces Per Month
Detailed Product Description
Item: SMA RF Conector Plating: Gold Plating
Gender: Female Impedance: 50Ω
Frequency: DC~18GHz Lifetime: 500 Cycles
Body: Brass Application: Audio/vedio/microwave
High Light:

Microstrip Mini SMA RF Connector

,

Female 50Ω SMA RF Connector

,

18GHz Female SMA Connector

Brass Gold Plated Female Microstrip Series Mini SMA RF Connectors

SSMA series RF coaxial connectors are miniaturized products of SMA connectors, which have the characteristics of small size, wide frequency bandwidth and high reliability. It is widely used in aviation, aerospace, microwave communications and other fields.



Key Features:

  • Space saving alternative to standard SMA
  • Threaded coupling mechanism offers reliability for rugged designs
  • Suitable for high-frequency applications

18GHz Female 50Ω Microstrip Mini SMA RF Connector 0

Specifiacation of SSMA Rf Connectors:

Electronic and Material Characterials
Impedance 50Ω
Frequency Range DC~30GHz
Rated Voltage 250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 750 VRMS (Maximum sea-level)
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center conductor Male Brass                    gold plated
Female Beryllium copper  gold plated
Shell and other metal parts Brass                    gold plated
Stainless steel     passivated
Cable sheath Brass                   nickle plated
Insulator PTFE
Seal ring Silicon rubber
Mating torque 0.79 -1.13 N.m



Product Cataloge:



RF Adapter
SMA RF Connector
SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints



Application:

  1. Microwave Systems Telecommunications
  2. Civil & Military Aeronautics
  3. Military Equipment,
  4. Space
  5. 5G Solutions
  6. Measurement Systems
  7. Mobile Telephone WiFi Antennas Systems

Interface Dimentions:

18GHz Female 50Ω Microstrip Mini SMA RF Connector 1



Related Product


1.Mini SMA Microstrip series 2 Hole Flange Connectors

18GHz Female 50Ω Microstrip Mini SMA RF Connector 2

2.Mini SMA PCB Panel Mount 4 Hole Flange Connectors

18GHz Female 50Ω Microstrip Mini SMA RF Connector 3

3.SMA Female RF Connectors for cable RG178

18GHz Female 50Ω Microstrip Mini SMA RF Connector 4

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
