Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability

Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability
Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability

Large Image :  Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS, ISO-9001-2015
Model Number: SMA-KFD15
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3-4 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1,000,00 Pieces Per Month
Detailed Product Description
Product Name: SMA RF Conector Plating: Gold Plated
Gender: Female Impedance: 50Ω
Frequency: DC~18GHz Durability: 500 Cycles
Application: Communication
High Light:

sma antenna connector

,

sma bulkhead connector

 Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability

1. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).

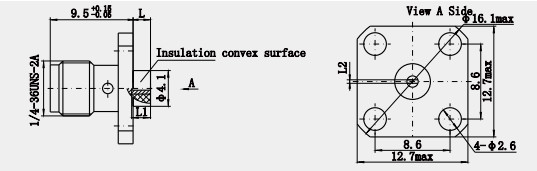

Outline Drawing:

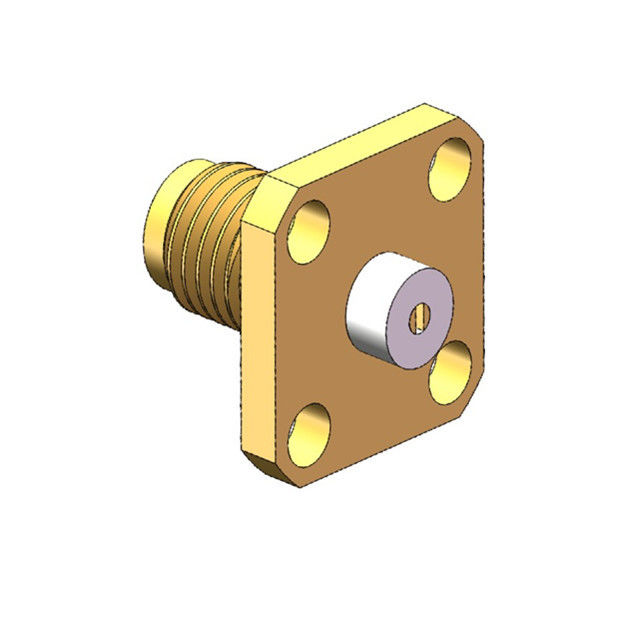

Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability 0

Model No. L L1 L2
SMA-KFD15 2 2 0.4
SMA-KFD24 2 2 0.2
SMA-KFD28 3 2.5 0.2

Note:The slot is parallel to one side of flange.



Specifiacation:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 18GHz
Insertion Loss ≤0.30dB
VSWR ≤1.2(DC-6GHz)
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE



Application:

* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
* Base Station
* Mobile communication
* Outdoor facilities
* Radar microwave



Interface Dimentions:

Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability 1

Other Female/Male SMA Connector



1.SMA Female RF Connector for  Semi-rigid Semi-flex Cable

Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability 2



2.SMA Male Microstrip series RF Connector

Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability 3



3.SMA Solder Attachment Male RF Connector for PCB

Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability 4



4.SMA Threaded Bulkhead Mount Female Connector

Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability 5

NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
