Lightweight Glass To Metal Seal Feedthrough Gold Plated For Electronics Packages

Lightweight Glass To Metal Seal Feedthrough Gold Plated For Electronics Packages
Lightweight Glass To Metal Seal Feedthrough Gold Plated For Electronics Packages Lightweight Glass To Metal Seal Feedthrough Gold Plated For Electronics Packages Lightweight Glass To Metal Seal Feedthrough Gold Plated For Electronics Packages Lightweight Glass To Metal Seal Feedthrough Gold Plated For Electronics Packages

Large Image :  Lightweight Glass To Metal Seal Feedthrough Gold Plated For Electronics Packages Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: ROHS ISO-9001-2015
Model Number: JM2516-33
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 Weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 30,000,000 pcs per year
Detailed Product Description
Product Name: Glass To Metal Seals Plating: Gold Plated
Impedance: 50Ohm RF Pin: Single
Material: Kovar 4J29 Glass: 7052,7070, DM308
Hermecity: <1.01325 X 10E-08 Std.cc/s VSWR: 1.2
High Light:

hermetically sealed electrical connectors

,

mini rf connector

Glass to Metal Seals 50Ohm RF Feedthroughs Single Pin for Electronics Packages

Hermetic Glass to Metal Seals RF/DC Feedthroughs /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.



The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

Hermetic Seal Solder Contact 6-pin Feedthroughs Connector

Specification:

Product Name Hermetic Glass to Metal Seals
Model No. JM2516-33
Impedance 50Ohm RF
Type 1 pin
Rows 1 row
Color Gold plated
Housing and pin material Kovar 4J29
Glass material
Glass Color
7050 or 7070 type or DM308
Green or White
Freqecncy Range DC~50 GHz
VSWR ≤1.2
Withstand Voltage ≥300V

Hermecity

Leak Rate

< 1.01325 X 10-3 Pa*cm3/s
< 1X 10-9 mbar*l/s
< 1 x 10-9 ccHe/sec @ 1 atm
Insulation Resistance ≥2000MΩ
Operating temperature -65℃~+260℃



Product :

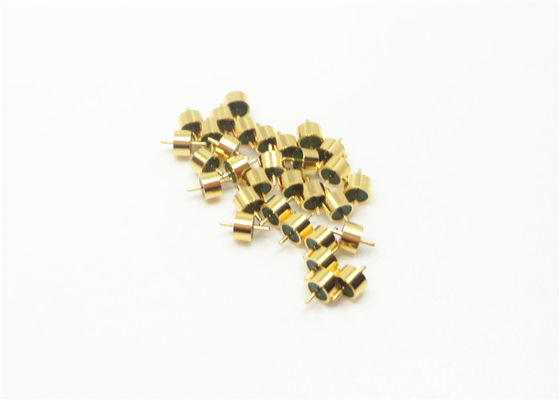

Lightweight Glass To Metal Seal Feedthrough Gold Plated For Electronics Packages 1

Features:

-Small size

-Hermetic

-lightweight

-Stable quality and high reliability

-Inner conductor: Gold wire bonding, soldering and mating method for choice



Advantages:
-Military Grade with 1.27um gold plated
-Strict tolerance control
-Standard and custom design for choice.
-High cost-effective products and services
-Large stocks for standard sizes
-Fast delivery for custom products


Application:

Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.



Catalog-Glass-to-Metal Hermetic Seals.pdf

Lightweight Glass To Metal Seal Feedthrough Gold Plated For Electronics Packages 2



Company Profile:

Lightweight Glass To Metal Seal Feedthrough Gold Plated For Electronics Packages 3



Xi'an Elite Electronic Industrial Co., Ltd.

Founded in August 2003, Elite Electronic Industrial is a reliable manufacturer and exporter of RF electrical connectors, RF adapters, cable assemblies, wave-guide and multi-channel microwave rotary joints, etc. These RF electrical interconnects are widely used in aerospace, aviation, navigation, communications, antennas and other important electrical systems.

We are components supplier of China Spacecraft Shenzhou nine and many other national high tech projects. We have more than 17 years ODM experience on military and commercial Interconnect Components.


Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J, Micro D-sub, MDM)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. ODM Products


Samples are available. Please contact us for more details.


Welcome new and old customers from all over the world to contact us for future business relationships and mutual success!

Lightweight Glass To Metal Seal Feedthrough Gold Plated For Electronics Packages 4
