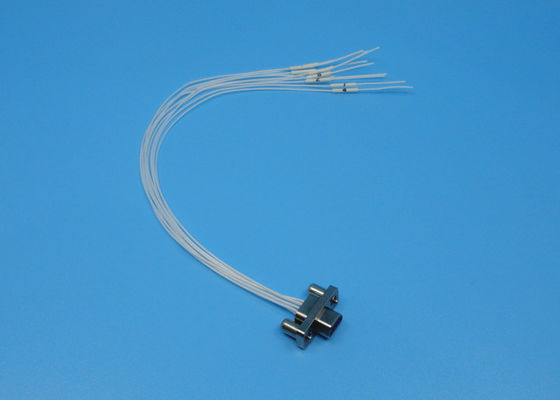

Small Install Space J30j 9 Pin Plug Connector With 200mm Afr250 Cable

Small Install Space J30j 9 Pin Plug Connector With 200mm Afr250 Cable
Small Install Space J30j 9 Pin Plug Connector With 200mm Afr250 Cable Small Install Space J30j 9 Pin Plug Connector With 200mm Afr250 Cable Small Install Space J30j 9 Pin Plug Connector With 200mm Afr250 Cable Small Install Space J30j 9 Pin Plug Connector With 200mm Afr250 Cable Small Install Space J30j 9 Pin Plug Connector With 200mm Afr250 Cable

Large Image :  Small Install Space J30j 9 Pin Plug Connector With 200mm Afr250 Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS, ISO-9001-2015
Model Number: J30J-9TJL-200
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
Product Name: J30J Miniaturized Rectangular Contact Type: Micro Twist Pin, Gold Plating
Termination Type: Soder / Welding Wire Contact Spacing: 1.27mm
Material: Aluminum Alloy Section Area: 0.1-0.15mm²
Cable Length: 200mm
High Light:

rectangular j30j connector

,

micro d connector

Micro Rectangular Connector J30J 9 pins Plug Connector With 200mm AFR250 Cable



Specification:

Current Rating 3A
Voltage Rating 300V
Insulation Resistance ≥ 5000 MΩ
Durability 500 cycles
Dielectric Withstand Voltage 800
Environmental Temperature -55℃ ~ + 125℃
Relative Humidity up to 95% at +40℃
Vibration 10Hz~ 2000Hz 196m/S²
Total acceleration RMS 23.1G
Impact 735m/S²



J30J series product is equivalent to the American MDM series products, etc, the shell is aluminum alloy, contact space is 1.27mm, apply to the wire core section area is 0.1-0.15mm squared. The product performance comply with GJB2446A( general specification for micro-miniature polarized shell rectangular electrical connectors),it is equivalent MIL-DTL-83513, it is divided to common(shell) and improved(shell) . With the small install space, light weight, reliable connect, excellent electromagnetic scree, good earthquake resistance, etc. It is widely used in small space required electronic equipment and apparatus.



Contact Arrangements (Face View of Pin insert)

Small Install Space J30j 9 Pin Plug Connector With 200mm Afr250 Cable 0

NOTE:

The common connectors include 6 subfamilies: crimp contact connector, solder contact connector, in-line contact
for PCB N, in-line contact for PCB N-J, right angle contact for PCB W, right angle contact for PCB W-J.



J30J-TJ Detailed Drawing:(Unit:mm)

Small Install Space J30j 9 Pin Plug Connector With 200mm Afr250 Cable 1

Small Install Space J30j 9 Pin Plug Connector With 200mm Afr250 Cable 2Small Install Space J30j 9 Pin Plug Connector With 200mm Afr250 Cable 3

Features:


- 1, 2, 3 ,4-raw options,

- 9-100contacts

- Twist pin, high contact density
- MIL-DTL-83513 qualification
- Straight, right-angle models choice
- Space and weight saving.

- 0.635mm,1.27mm,1.91mm contact spacing.
- Excellent resistance to shock and vibration.
- Custom designed connectors and cable assemblies.

- The termination style is crimp contact, and the reseau is (row × line) 1.27×2.54.



Types:
- J30J series
- J30JM( Hermetic) series
- J30(Plastic) series
- J50J series
- J55A series
- J56J series

- J55AM( Hermetic) series



Applications:
- Navigation systems
- Research centres
- Medical applications
- Board to Cable

- Avionics, radars

- On-board equipment
- Telecommunication systems
- Missiles and guidance systems
- Surface Mount (SMT) Board to Cable



NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your detai
