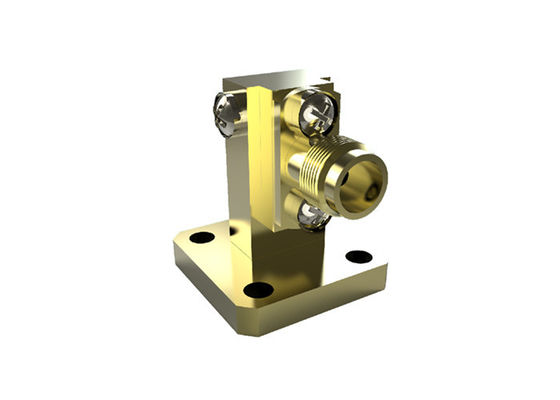

| Product Name: | Waveguide To Coaxial Adapters | Material: | Brass Connector |
|---|---|---|---|
| Frequency Range: | 26.4-40GHz | Connector: | 2.92mm(K Type) |
| VSWR: | 1.25 | Waveguide Size: | WR28 |
| Body Style: | Right Angle | Insertion Loss: | ≤0.35 DB |
| High Light: | coax to waveguide adapter,right angle coax adapter |
||
Waveguide to Coaxial Adapter produced by Xi'an Elite Electronic Industrial Co., Ltd. are divided into two structures, right angle and end lauch. For coaxial end of waveguide adapters, we can provide N type, TNC, SMA, 3.5mm, 2.4mm, SMP, SSMP and many other types. Their frequencies range from 5.4GHz to 70GHz. Our waveguide models range from BJ84 to BJ400 (WR112-WR22).
In addition, we can offer custom coaxial waveguide adapters in accordance with customers' special requirement.
Specification:
| Product Name | Waveguide to Coaxial Adapters |
| Coaxial type | 2.92mm(K type) |
| Waveguide Size | WR28 |
| Body Style | Right Angle |
| Frequency Range | 26.4-40.0GHz |
| SMA Impedance | 50 Ohm |
| VSWR | 1.25 |
List of Waveguide to 2.92mm(K type) Coaxial Adapters:
| Model Number | Description | Note |
| K/BJ220-KF2 | WR42 to K(2.92mm) female right angle adapters | BJ220=WR42 |
| K/BJ220-KF1 | WR42 to K(2.92mm) female end launch adapters | K=female |
| K/BJ260-KF | WR34 to K(2.92mm) female right angle adapters | BJ260=WR34 |
| K/BJ260-KF1 | WR34 to K(2.92mm) female end launch adapters | |
| K/BJ320-KF | WR28 to K(2.92mm) female right angle adapters | BJ320=WR28 |
| K/BJ320-KF1 | WR28 to K(2.92mm) female end launch adapters | |
| K/BJ320-JF1 | WR28 to K(2.92mm) male end launch adapters | J=male |
| K/BJ400-KF1 | WR22 to K(2.92mm) female end launch adapters | BJ400=WR22 |
| K/24JS18000-KF | WR24JS18000 to K(2.92mm) female end launch adapters |
Cross-references of waveguide Standards
| Chinese Standards | International Standards | Frequency Range (GHz) |
| BJ84 | WR112 | 6.57~9.99 |
| BJ100 | WR90 | 8.20~12.5 |
| BJ120 | WR75 | 9.84~15.0 |
| BJ140 | WR62 | 11.9~18.0 |
| BJ180 | WR51 | 14.5~22.0 |
| BJ220 | WR42 | 17.6~26.7 |
| BJ260 | WR34 | 21.7~33.0 |
| BJ320 | WR28 | 26.3~40.0 |
| BJ400 | WR22 | 32.9~50.1 |
| BJ500 | WR18 | 39.2~59.6 |
| BJ620 | WR14 | 49.8~75.8 |
| BJ740 | WR12 | 60.5~91.9 |
| BJ900 | WR10 | 73.8~112 |
NOTE:
We have over 10,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
Optimal Waveguide to Coax Adapters-ELT 2023.pdf
