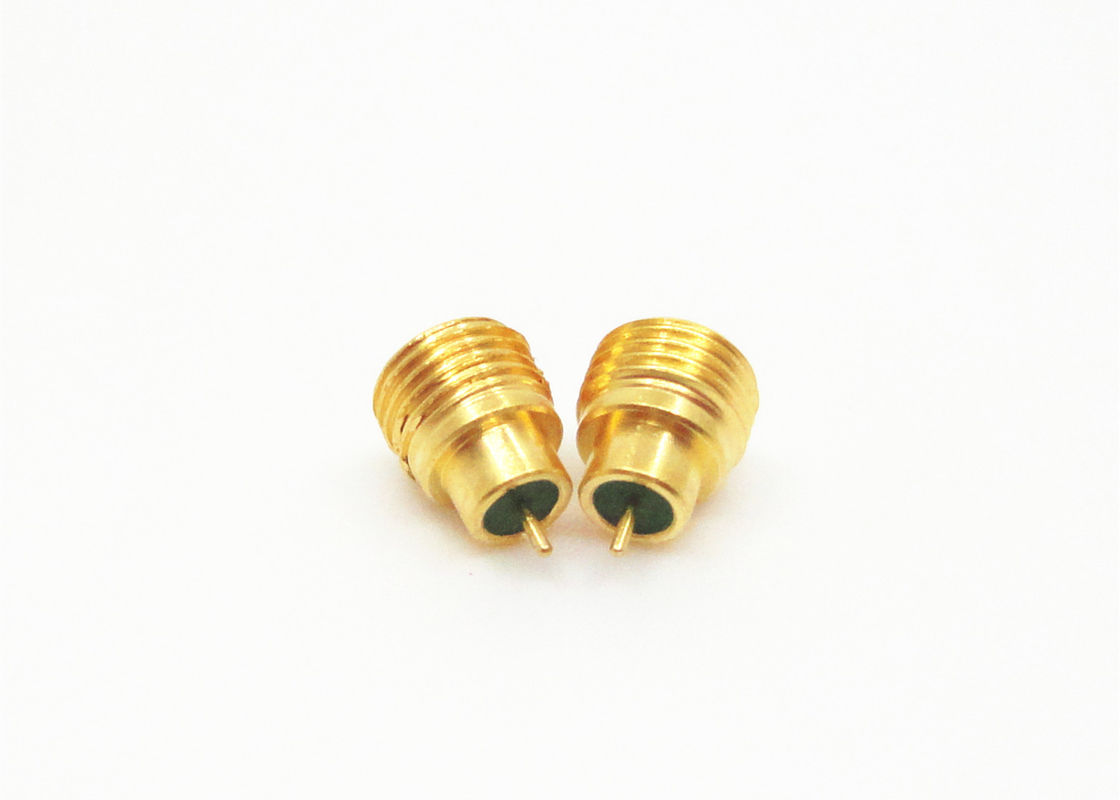

Male Smpm Coaxial Connector Gold Plated Good Wear Resistance For Military

I'm Online Chat Now
Certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
Product was exactly as expected and of high quality. Service was excellent. Will definitely order from again.

—— Gregory,USA

Understood my requirements and sought the right parts.

—— Ian, New Zealand

It has been a great pleasure dealing with you and thank you for your help and suggestion. Hope that there will be more copperation in the near future.

—— Terence, Singapore

The SMP connectors are high quality, the leak rate can reach 1*10^-9 mbar*l/s. A great deal with such an economic price.

—— Jonh,United States

Professional Seller

—— Abdu,Saudi Arabia

Male Smpm Coaxial Connector Gold Plated Good Wear Resistance For Military

Male Smpm Coaxial Connector Gold Plated  Good Wear Resistance For Military
Male Smpm Coaxial Connector Gold Plated  Good Wear Resistance For Military Male Smpm Coaxial Connector Gold Plated  Good Wear Resistance For Military Male Smpm Coaxial Connector Gold Plated  Good Wear Resistance For Military

Large Image :  Male Smpm Coaxial Connector Gold Plated Good Wear Resistance For Military Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SSMP(M)-JHDT
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: within 3 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Product Name: SSMP Connector, SMPM, Mini SMP Gender: Male
Material: Brass Plating: Gold Plated
Impedance: 50Ω Frequency Range: DC~50GHz
Model: SSMP(M)-JHDT Other Names: Mini SMP, SMPM
High Light:

smpm coaxial connector

,

small coax connectors

50 Ohm SMPM Staight Rf Coaxial Solder SSMP Male Plug Connector



SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole. The SMPM for the install situation with the requirement of high reliability modular intensive.Typical applications include third generation telecommunication systems






Specification:

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤3.5mΩ, Sealing≤5mΩ
Center conductor Normal≤8mΩ, Sealing≤30mΩ
  DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5



Material & Mechanical Characteristics:



Center Conductor:

Male: Sn-P Bronze/Kovar, Gold plated

Female: Beryllium bronze, Gold plated


Elastic Contact:Beryllium bronze Gold plated

Body and other Metal Parts: Brass/Kovar with Gold plated

Insulators:  Glass sintering/PTFE/PEI







Product Drawing:



Male Smpm Coaxial Connector Gold Plated  Good Wear Resistance For Military 0





Features:



1, SMPM (SSMP) is a sub-miniature, push-on style micro-interfaces connector.



2, It is widely used in telecommunication systems



3, The size of SMPM is 35% smaller than the SMP design.



4, This type SMPM male connector can offered as full-detent or smooth bore designs for your preference of separation forces.



5, This type RF connector with wide frequency range up to 50 GHz



6, Cable mount versions for both flexible and semi-rigid cable Materials





Gold offers the following main advantages:



-- Excellent wettability/solderability



-- Excellent protection against corrosion



-- Low contact resistance



-- Good wear resistance





Application:



* Aerospace



* Board-to-board interconnect



* Broadband



* Antennas



* Military



* Instrumentation





Certificate:

Male Smpm Coaxial Connector Gold Plated  Good Wear Resistance For Military 1





Delivery time:



* If the warehouse have, we can delivery it in severial days, or 4~8weeks after receiving the deposit.It depends on the quantity ordered.



Min. Order:



If the production are in our stock warehouse.No MOQ for it, or the MOQ will be 10pcs.



NOTE:

We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
