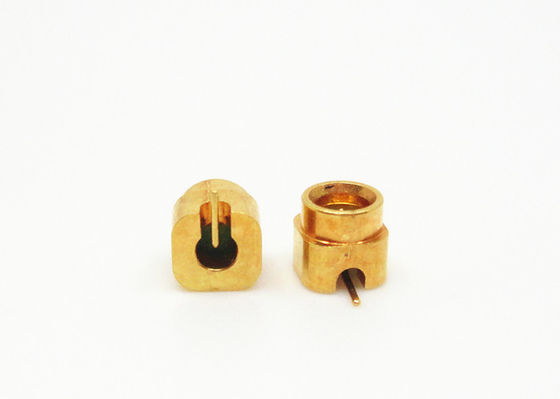

SMPM RF Coaxial Connector Male Solder Right Angle 50Ω Impedance with Glass

Male Solder Right Angle RF Coaxiall Connector SMPM with Glass

SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting and the plug has two interface form with full detent and smooth bore.

Material & Mechanical Characteristics:

Center Conductor:

Male: Sn-P Bronze/Kovar, Gold plated

Female: Beryllium bronze, Gold plated

Elastic Contact:Beryllium bronze Gold plated

Body and other Metal Parts: Brass/Kovar Gold plated

Features

•SMPM is a high frequency ulta miniature RF connector, 35% smaller size than the SMP connectors

•SMPM is a bind mate snap-on micro-miniature connector, performance up to 50GHz

•Allows for axial and radial misalignment (blind mate applications)

•Excellent reliability where extreme shock & vibration conditions are experienced

Application:

* Network

* Satcom

* Automotive

* Jump line join

* Basic facility

* Radar,microwave

* Computer/LANs

Advantages:

√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 700 experienced workers with over 10 production line.
√ Specializes in manufacturing RF connector more than 20 years.
√ Long and rich cooperation experience with national project components supply
√ With our own factory with 35,000㎡
√ Competitive price
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers

Factory& Production Line:

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
