| Product: | RF Adapter | Plating: | Gold Plated |
|---|---|---|---|
| Impedance: | 50Ω | Gender: | Female,Male |
| Model: | SMA/SMB-JK | Application: | RF |
| High Light: | coaxial cable adapter,rf cable adapters |
||
1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 hole panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).
Specification:
| Electrical Characteristics | |||
| Impedance | 50Ω | ||
| Frequency Range | DC-18GHz | ||
| Rated Voltage | 335VRMS* | ||
| Dielectrics Voltage-resistance | 1000VRMS* | ||
| Insulation Resistance | ≥5000MΩ | ||
| Center Resistance | Center Conductor | ≤3.0mΩ | |
| Outer Conductor | ≤2.0mΩ | ||
| VSWR | ≤1.2 | ||
| Material & Mechanical Characteristics | |||
| Center Conductor | Male | Brass Gold plated | |
| Female | Sn-P Bronze Gold plated | ||
| Shell and other Metal Parts | Brass Gold plated | ||
| Durability | 500 cycles | ||
| Insulators | PTFE | ||
Detailed Images:
Unit: mm
| Model No. | Description |

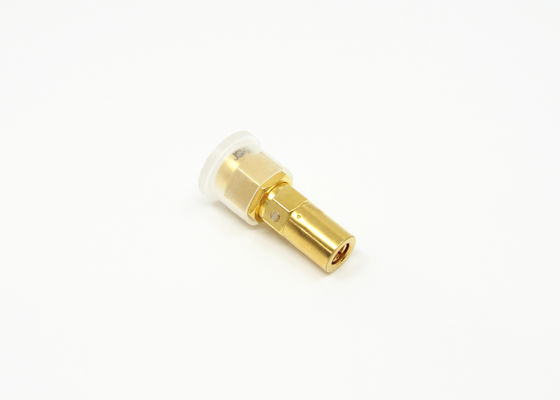

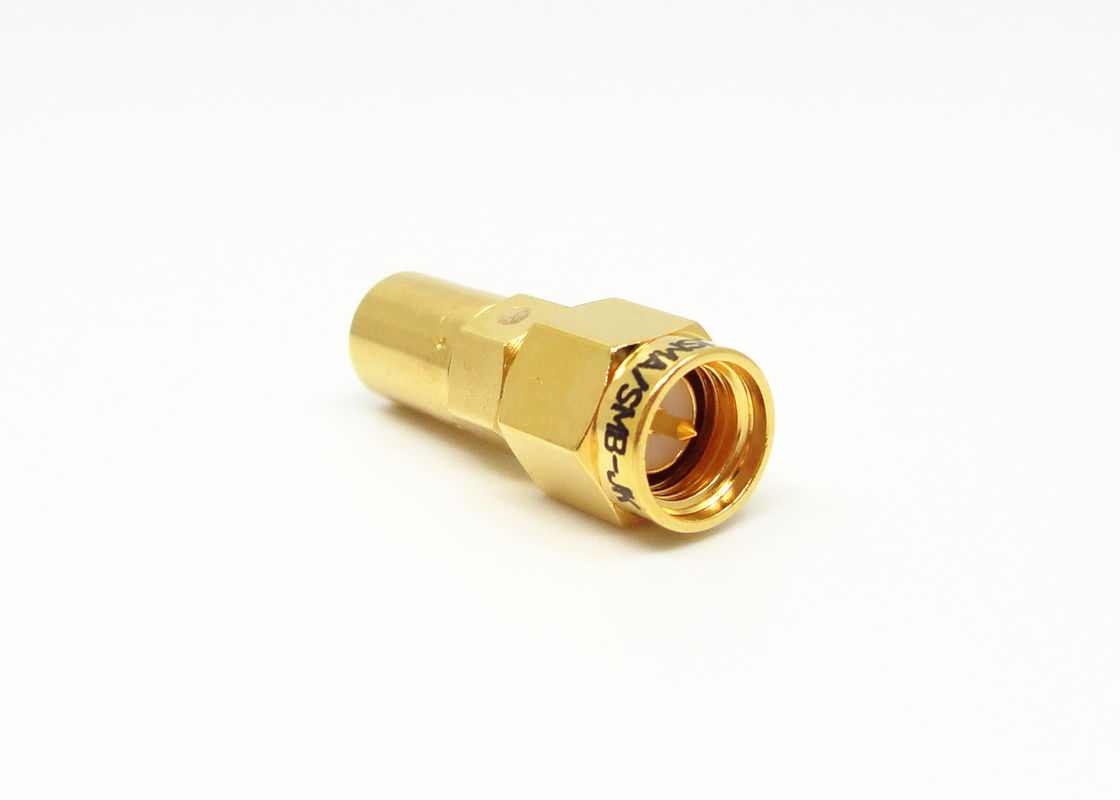

| SMA/SMB-JK | Gold plated brass SMA male to SMB female adapter |
Between Series Adapter list:
| Types | Description |
| SMA/SSMA | SMA male/female to SSMA male/female adapter |
| SMA/SMP | SMA male/female to SMP male/female adapter |
| RPSMA/SMA | RP SMA male/female to SMA male/female adapter |
| SMA/BMA | SMA male/female to BMA male/female adapter |
| BNC/SMA | BNC male/female to SMA male/female adapter |
| SMA/SMB | SMA male/female to SMB male/female adapter |
| N/SMA | N type male/female to SMA male/female adapter |
| TNC/SMA | TNC male/female to SMA male/female adapter |
| N/BNC | N Type male/female to BNC male/female adapter |
| SMA/SSMC | SMA male/female to SSMC male/female adapter |
| N/3.5 | N Type male/female to 3.5mm male/female adapter |
| SMA/MCX | SMA male/female to MCX male/female adapter |
| ODM | ODM type is available |
Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(Micro D-sub, MDM)
6. Glass-to-metal Hermetic Seals, Headers, Feedtru(RF & DC)
7. ODM Products
Packaging Details:
* Standard Export Carton
* According to your requirements
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
