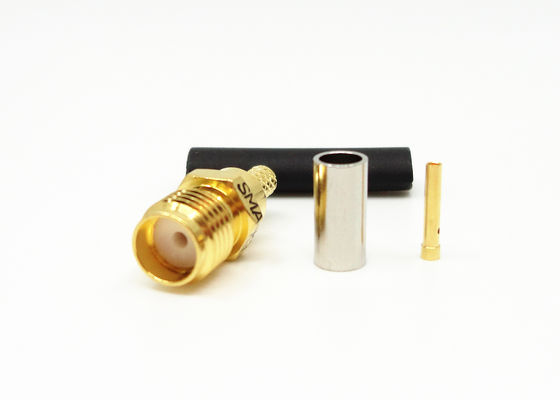

Brass Female 50Ω Impedance RG316 Cable SMA RF Connector

Brass Female 50Ω Impedance RG316 Cable SMA RF Connector
Brass Female 50Ω Impedance RG316 Cable SMA RF Connector Brass Female 50Ω Impedance RG316 Cable SMA RF Connector Brass Female 50Ω Impedance RG316 Cable SMA RF Connector Brass Female 50Ω Impedance RG316 Cable SMA RF Connector

Large Image :  Brass Female 50Ω Impedance RG316 Cable SMA RF Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: CE ROHS
Model Number: SMA-K3
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100,000 Pieces Per Month
Detailed Product Description
Product Name: SMA RF Conector Plating: Gold Plated/ Passivation
Frequency: DC~18GHz Impedance: 50Ω
Gender: Male Durability: 500 Cycles
Model: SMA-K3
High Light:

sma antenna connector

,

sma bulkhead connector

Brass Female 50Ω Impedance RG316 Cable SMA RF Connector

SMA series is a kinds of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics. It is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

Brass Female 50Ω Impedance RG316 Cable SMA RF Connector 0

Electrical Specification :

Impedance 50Ω
Frequency Range DC~18GHz
Rated Voltage 335VRMS*
Dielectrics Voltage-resistance 1000VRMS*
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3

SMA-K3 (8)_4.jpg



Material & Mechanical Characteristics:

Center Conductor Male Brass Gold plated
Female Sn-P Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Brass Nickel plated
Stainless Passivation
Crimping Sleeve Brass Nickel plated
Tightening torque of connection 0.79-1.13N .m
Durability 500 cycles
Sealing Ring Silicone Rubber
Insulators PTFE



Application:

*Network

*Radar

*Automotive

*Satcom

*Computer/LANs

*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Aerospace
*Board-to-board interconnect



Detailed Images:




Model No. Description L(mm) L1 L2 Cable Type
SMA-K3 SMA female connector for RG316 cable 17 5.6 8 RG316
SMA-K4 SMA female connector for SFF cable 19.9 8.5 10 SFF-50-2-2
SMA-K5G Stainless steel female connector for SFF cable 22 10 12 SFF-50F3-1



Packaging Details:
* Standard Export Carton
* According to clients' requirements



NOTE:
We have over 10,000 types of  Connector, if the connector you are using is not found, please contact us with your details.
