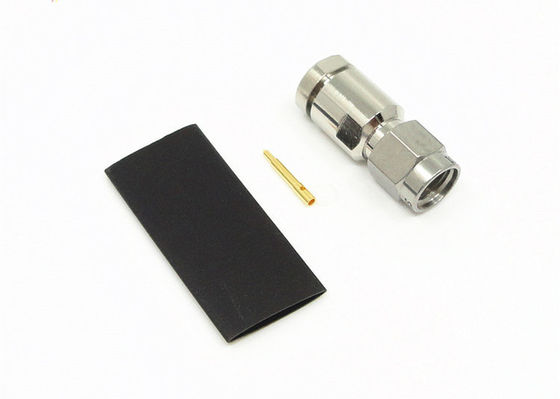

RF Coaxial Connector 335VRMS Rated Voltage Nickel Plated SMA Plug Connector

RF Coaxial Connector 335VRMS Rated Voltage Nickel Plated SMA Plug Connector
RF Coaxial Connector 335VRMS Rated Voltage Nickel Plated SMA Plug Connector RF Coaxial Connector 335VRMS Rated Voltage Nickel Plated SMA Plug Connector RF Coaxial Connector 335VRMS Rated Voltage Nickel Plated SMA Plug Connector RF Coaxial Connector 335VRMS Rated Voltage Nickel Plated SMA Plug Connector

Large Image :  RF Coaxial Connector 335VRMS Rated Voltage Nickel Plated SMA Plug Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SMA-142BG
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35000pcs/years
Detailed Product Description
Product Name: SMA RF Connector Plating: Nickel Plated
Durability: 500 Cycles Contact Material: Brass, BeCu
Material: Brass Design Standard:: IEC60169-15
Type: Straight Gender: Female
High Light:

sma antenna connector

,

sma coax connector

Nickel Plated SMA Female Socket Bulkhead Electrical RF Coaxial Connector


 SMA series connector is a kind of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume,good bandwidth,superior electrical characteristics. SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

RF Coaxial Connector 335VRMS Rated Voltage Nickel Plated SMA Plug Connector 0


Specification:

Electrical Characteristics
Impedance 50Ω
Frequency Range Connect with solf cable DC~12.4GHz
Connect with semi-rigid cable DC~18GHz
Rated Voltage 335VRMS
Dielectrics Voltage-resistance 1000VRMS
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass Gold plated
Female Sn-P Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Brass Nickel plated
Stainless Passivation
Crimping Sleeve Brass Nickel plated
Insulators PTFE
Sealing Ring Silicone Rubber
Durability 500 cycles
Tightening torque of connection 0.79-1.13N .m




Product Detail:
RF Coaxial Connector 335VRMS Rated Voltage Nickel Plated SMA Plug Connector 1
 RF Coaxial Connector 335VRMS Rated Voltage Nickel Plated SMA Plug Connector 2RF Coaxial Connector 335VRMS Rated Voltage Nickel Plated SMA Plug Connector 3
Features:

1, SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations
2, SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required
3, SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
4, SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20GHz)

Application:

* Broadband
* Instrumentation
* Antennas
* Telecom
* Phased array antennas
* Telecommunications

* Board-to-board interconnect


Product Cataloge:



RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints



NOTE:

We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
