Product Details:
Payment & Shipping Terms:
|
| Product Name: | MCX RF Conector | Plating: | Gold Plated |
|---|---|---|---|
| Impedance: | 50Ω | Durability: | 500 Cycles |
| Contact Material: | Brass, BeCu | Material: | Brass |
| Design Standard:: | IEC 60169-17 | Type: | Straight |
| Gender: | Male | ||
| High Light: | mcx cable connector,soldering crimp connectors |
||

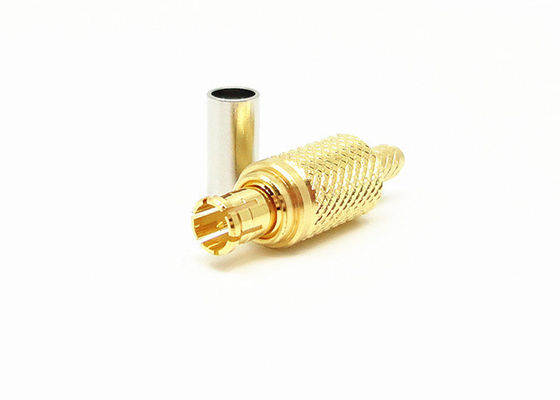

75Ohm High Quality MCX Stright Male Plug Crimp Electronic RF Coaxial Connector
TYPE MCX RF Connector is a kind of miniature Connectors with snap-on Coupling. Characteristic impedance has two types: 50 and 75Ohm. MCX connectors are available in straight or right angle versions, as well as, bulkhead, 2 hole panel, 4 hole panel or mountless options. The characteristic of connectors is in small volume,light weight,concise structure, easy to use. They are widely used in the Global position system, Digital personal computer net work, all kinds of radio instrument, small-sized electronic equipment and WLAN system.
MCX series RF coaxial connector is apply to the equipment which have the requirement of weight and volume, the operation frequency can reach 6GHz, use plug-in design, the interface size is similar with SMB, but the volume is approximately 30% smaller, contact is more reliable, connect is faster, which can meet the requirement of digital communication intensively and miniaturized.
Applications of the MCX connectors are those where size, weight, performance and ease of assembly are the driving considerations to the final design decision. Typically, these include GPS, wireless communications (WLAN and mobile) and automotive.
Specification
| Electrical Characteristics | ||
| Impedance | 75 Ohm | |
| Frequency Range | DC~3GHz | |
| Rated Voltage | 170 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) | |
| Insulation Resistance | >=5000MOhm | |
| Contact Resistance | Outer conductor | <=2.5mOhm |
| Center conductor | <=5.0mOhm | |
| VSMR | <=1.3 | |
Product Drawing
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Nickel Plated | |
| Shell / Housing | Brass,stainless steel | Nickel Plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
- Quick connect/disconnect snap-on mating reduces installation time
- Accommodates a wide range of miniature RG flexible semi-rigid coaxial cables
- MCX connectors are available in straight or right angle versions, as well as, bulkhead, 2 hole panel, 4 hole panel or mountless options.
- Low cost combined with high quality.
- Broadband performance with low reflection from DC to 6 GHz.
- 50 Ohm impedance
- Available for affixement to industry standard cable and as a printed circuit board device
- Provide repeatable performance
Application:
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
