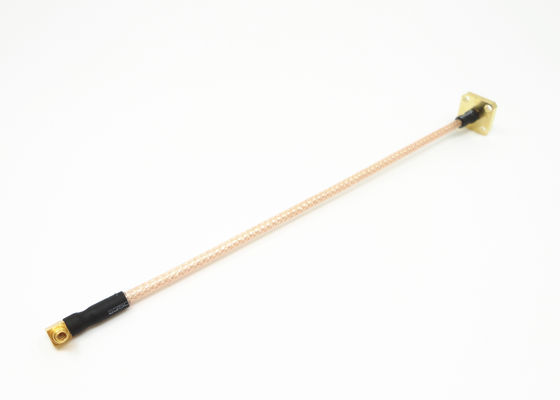

MMCX 4 Holes Flange Male Right Angle RF Cable Assemblies MMCX Male RG316

MMCX 4 Holes Flange Male Right Angle RF Cable Assemblies MMCX Male RG316
MMCX 4 Holes Flange Male Right Angle RF Cable Assemblies MMCX Male RG316 MMCX 4 Holes Flange Male Right Angle RF Cable Assemblies MMCX Male RG316 MMCX 4 Holes Flange Male Right Angle RF Cable Assemblies MMCX Male RG316 MMCX 4 Holes Flange Male Right Angle RF Cable Assemblies MMCX Male RG316

Large Image :  MMCX 4 Holes Flange Male Right Angle RF Cable Assemblies MMCX Male RG316 Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: RF Cable Assembly
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: * Standard Export Carton * According to customers' requirements
Delivery Time: 5-8 work days
Detailed Product Description
Product Name: RF Cable Assembly Plating: Gold Plated/ Nickel Plated
Impedance: 50Ω Certificate: CE ROHS
Interface: Snap-On, Threaded, Push RG316: Diameter=0.51mm
Material: Brass
High Light:

custom rf cable assemblies

,

micro coax cable assemblies

MMCX 4 Holes Flange Male Right Angle RF Cable Assemblies MMCX Male RG316



This cable Assembly is combine with our company self-made precision connector connect HUBER+SUHNER flexible soft cable connectors, with characteristics of wide bandwidth,low loss, good homogeneity, It’s mainly used in avionics, phased array radar, microwave RF device.

Our BMA Female 2 Holes Flange Mount RF Cable Assemblies uses a flexible cable type that is 50 Ohm. BMA Female cable assembly is constructed with Cable 086.



MMCX 4 Holes Flange Male Right Angle RF Cable Assemblies MMCX Male RG316 0


Specifiacation:

Electrical Characteristics
Characteristic Impedance 50ohm
Frequency Range 0~3GHz
VSWR ≤1.22
Dielectric Withstanding Voltage ≥1000VRMS,50Hz, at sea level
Dielectric Resistance ≥1000MΩ
Contact Resistance Center conductor ≤3mΩ
Outer conductor ≤2mΩ
Material & Mechanical Characteristics
Body Brass, Au Plated
Insulator PTFE
Center conductor Brass, Au Plated
Durability Mating cycles ≥500
Temperature Range -55-+155℃
Suitable for cable RG316
Interface IEC60169-52





Application:

* Computer/LANs

* Mobile communication

* Instrumentation

* Base Station

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radio and TV aerial system

* Mobile communication



Industral:



-Aerospace

-Defense

-Rail

-Medical

-Space

-Telecom

-Industrial

-Test & Measurement

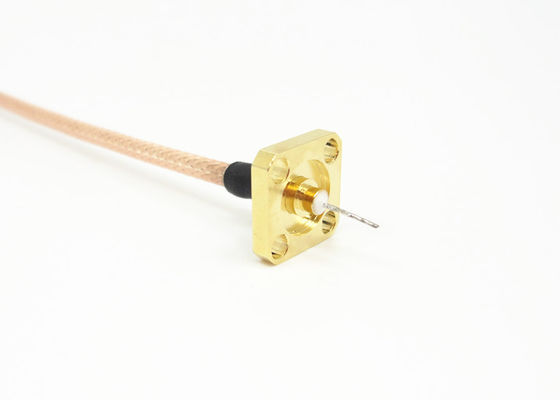

Detailed Drawing



MMCX 4 Holes Flange Male Right Angle RF Cable Assemblies MMCX Male RG316 1

Purchasing of ready-made microwave cable assembly lines provides important benefits:


• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality



Assembly shop capability:



*Automatic stripping

*Automatic laser stripping

*Temperature controlled soldering

*Clean room

*Laser marking



Product Cataloge:

RF Adapter
RF Cable Assemblies
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
Waveguide To Coaxial Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)




Packaging & Delivery:

* Standard Export Carton
* According to customers' requirements



NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your detai
ls.
