Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Gender: | Female |
|---|---|---|---|
| Product Name: | 2.4/3.5mm Adaptor | Keywords: | MMW Adaptor Connectors |
| Item: | Millimeter Wave Connectors | Plating: | Nickel Plated |
| Application: | RF | Surface Plating: | Passivate |
| Connector Type: | Straight RF Connectors | ||
| High Light: | coaxial cable adapter,rf connector adapter |
||

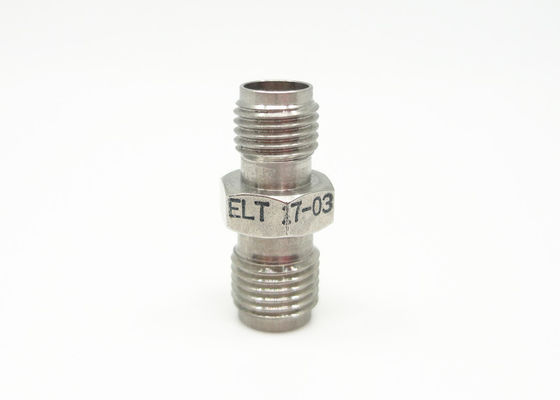

Stainless Steel 3.5mm to 2.4mm Type Female to Female (MMW)Millimeter Wave Adaptor
The 3.5 series is a common used millimeter wave connector, the frequency is 33 GHZ (up to 36 GHZ) use air interface can mate and interchange with SMA series, K series connectors, With advantages of great bandwidth, high reliability,it is widely used in microwave measurement and millimeter wave devices.
The high precision 50 ohm coaxial 3.5mm to 2.4mm adaptor for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 33 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤1.05+0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.5 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing |
Brass, Gold Plated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
| Contact pin | Gold Plating |
Features:
•The 2.4mm to 3.5mm RF adaptor is a precision microwave connectors.
•Stainless steel construction
•Superior electrical performance to 50 GHz
•Connectors in End Launch and Flange options
•Adapters to 2.4mm, SMP, 2.92mm, SMA.
•Great for applications that require high frequency transmission
•Connector mating interface per MIL-STD-348
•Superior electrical performance up to 50GHz
•Excellent reliability where extreme shock & vibration conditions are experienced
•Quick connect cable plugs and adapter
Application:
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications
* Research centres
* Satellite communications
